Texas Railroad History - Tower 44 and Tower 167 - Hillsboro
Tower 44: A Crossing of the Missouri, Kansas
& Texas Railway, the
Trinity & Brazos Valley Railway, and the St. Louis Southwestern Railway
Tower 167: A Crossing of the
Missouri - Kansas - Texas Railway and the Texas Electric Railway
 |

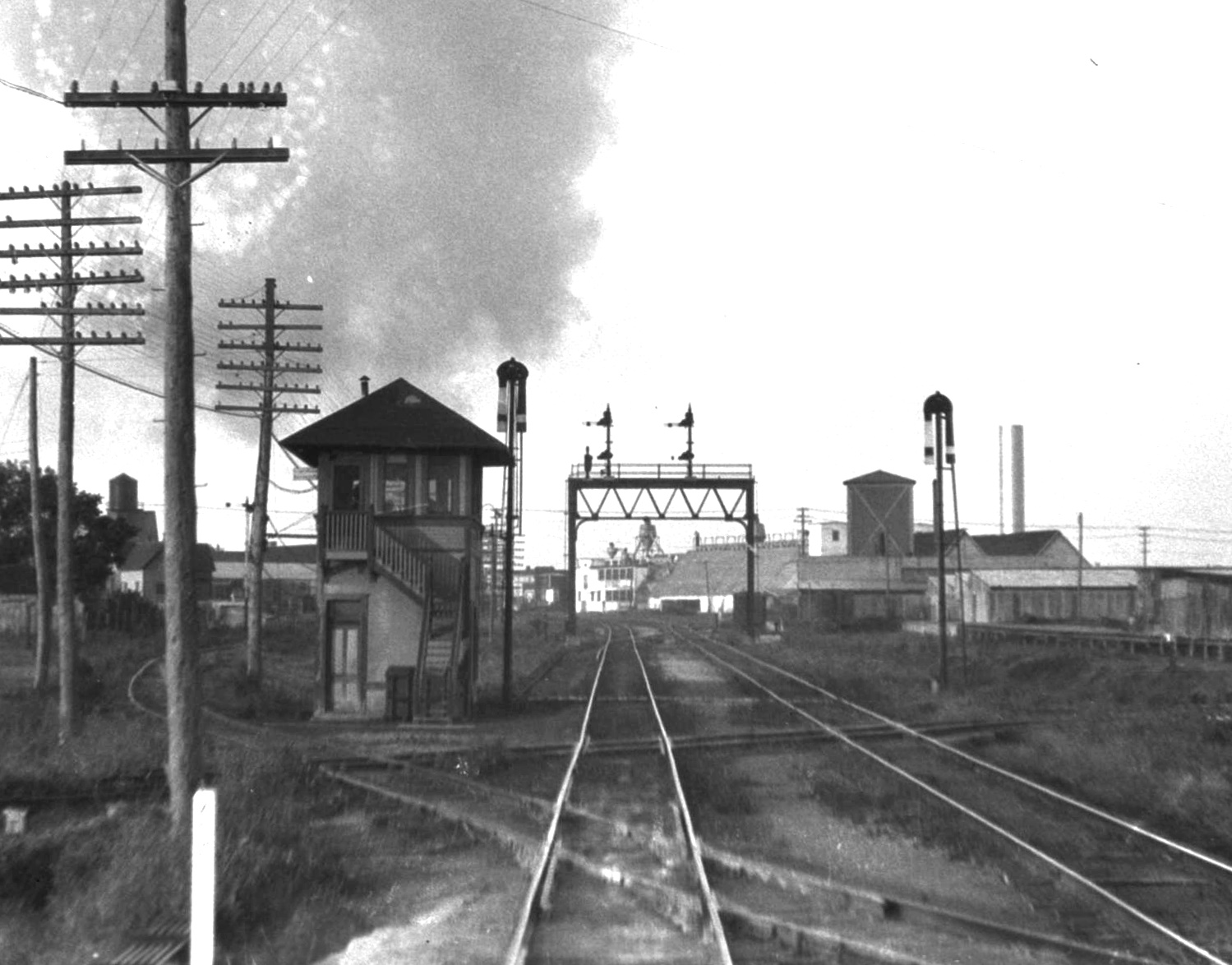

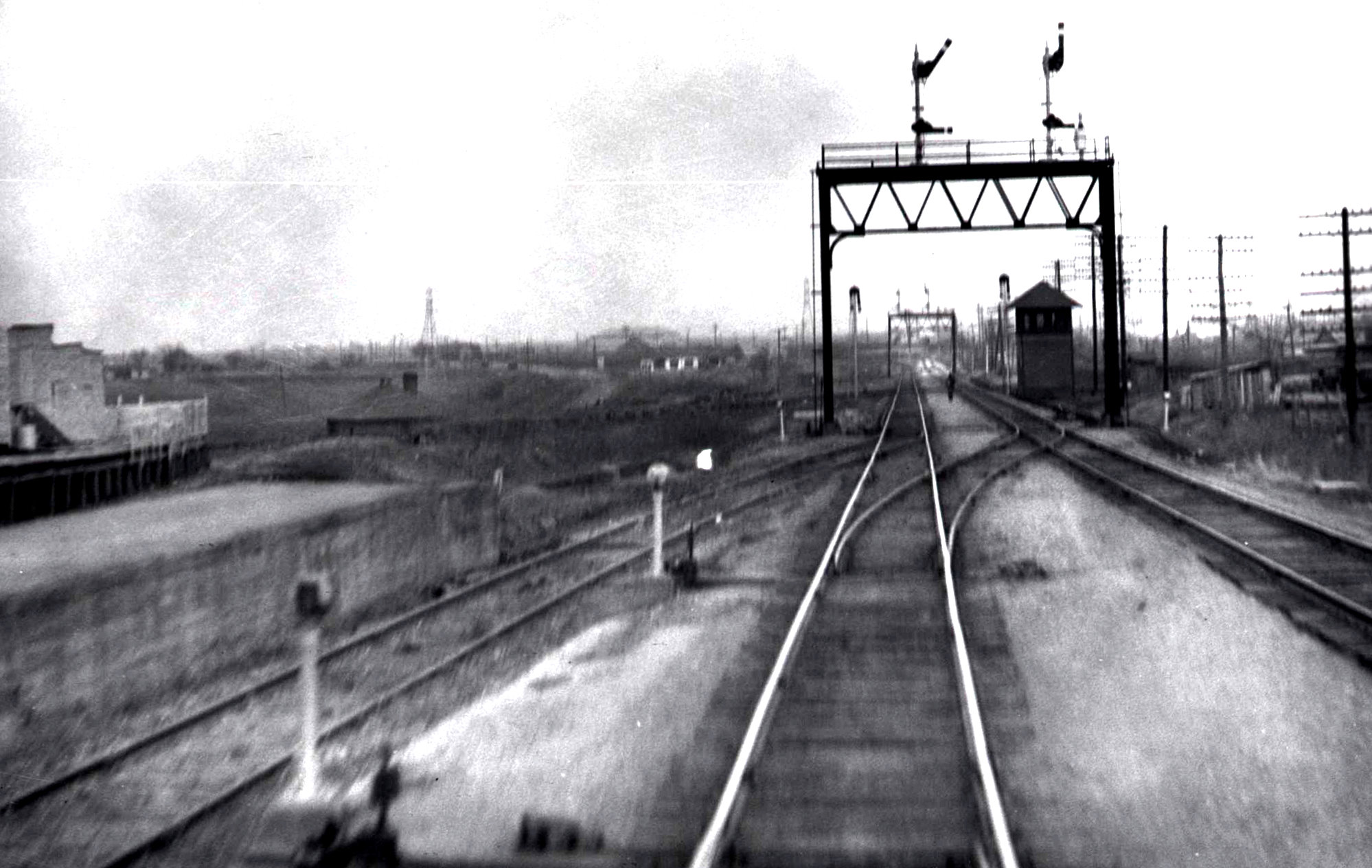

Left: Railroad
executive John W
Barriger III took this photo facing south from the rear platform of his
business car as his train passed northbound through Hillsboro on tracks
of the Missouri - Kansas - Texas (MKT) Railway. Barriger often photographed railroad
related structures during his trips, and
here, he was motivated by the sight of Tower 44 which hosted an
interlocking plant on the north side of Hillsboro.
Barriger was close enough to the tower that his photo clearly shows the
crossing tracks at this complex junction.
The track passing to the left
of the tower is the Trinity & Brazos Valley (T&BV) line coming from
Mexia
north through Hillsboro continuing to Cleburne. It crosses the MKT's north / south double track
at an acute angle in the foreground. The other track crossing horizontally is the St.
Louis Southwestern (SSW) from Corsicana entering
from the east (left) and crossing to the west side of the MKT tracks
where it turned south and terminated in Hillsboro. This photo was
probably taken in the early 1930s. The T&BV tracks past Tower 44 between
Hillsboro and Cleburne were abandoned in 1932. Salvage
operations may not have commenced immediately, so the tracks might have
remained in
place for a few years. (photo courtesy John W. Barriger III National
Railroad Library)

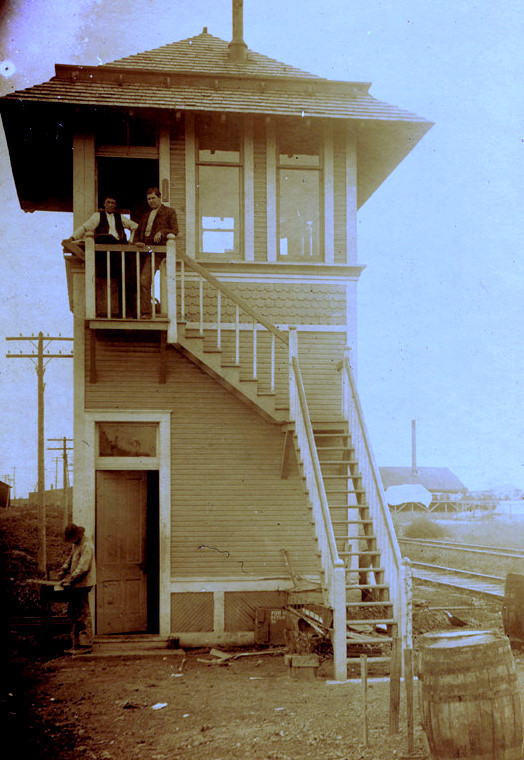

Below Left: Ken Stavinoha provides this
image of Tower 44, but the source and timeframe of the photo is unknown. The reverse side of the photo
has
"Hillsboro" written in pencil.

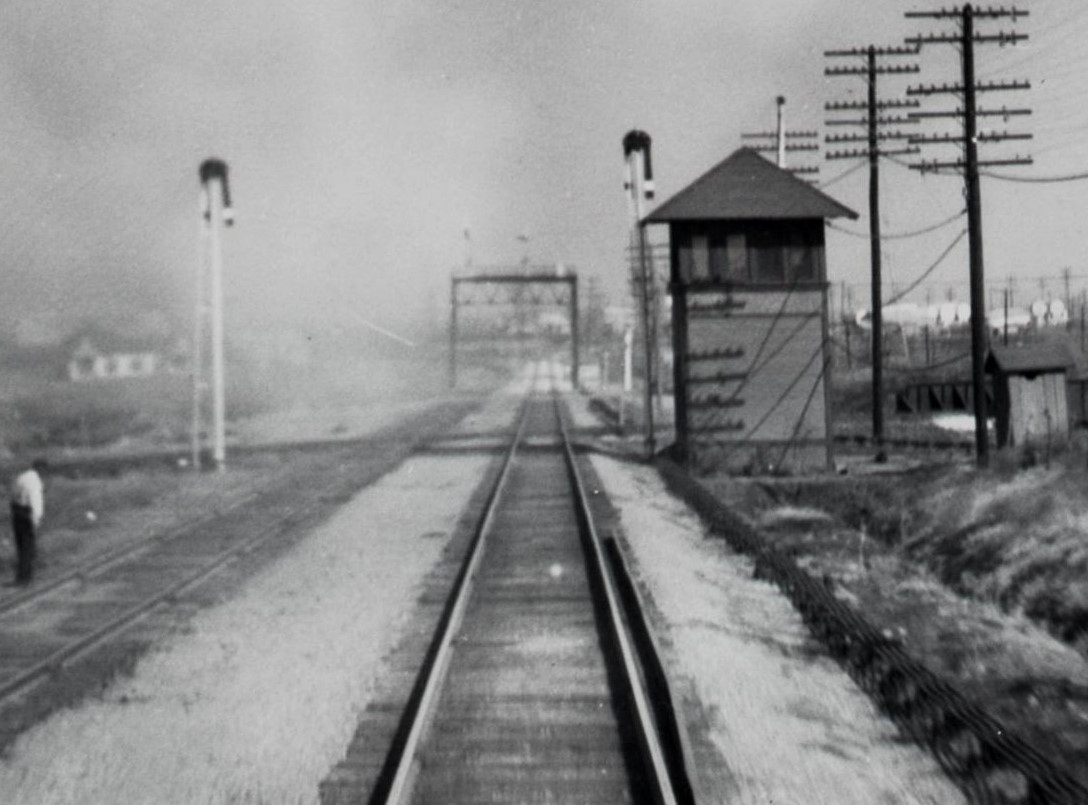

Below Right: This view
of Tower 44 (courtesy John W. Barriger III National Railroad Library)
looks north, likely taken some years after the photo at left. A small
hut (purpose unknown) is barely visible in the shadows beside the tower where the T&BV tracks
had been located. The SSW tracks cross the MKT at an angle and pass behind the house and the light colored
building on the left side of the image. |
Hillsboro (originally spelled Hillsborough until changed by the Post Office) was
established as the county seat of Hill County in 1853. The first railroad into
Hillsboro would be celebrated nearly thirty years later in 1881 with the arrival
of the Missouri, Kansas & Texas Railway (MK&T, but commonly called
"the Katy"; its name changed to Missouri - Kansas - Texas Railway, MKT, in 1923 but it was still "the Katy".) The
Katy line through Hillsboro is attributable to railroad magnate Jay Gould who controlled various Midwest and eastern railroads. Gould needed an outlet to Mexico and
ports on the Gulf to maximize profitability, so he decided to move into Texas,
eyeing the Katy as a potential component of his long term plan. The Katy had bridged the Red River
into Denison in 1872, exchanging freight
and passengers with the Houston & Texas Central (H&TC) Railway which had
a route between Denison and Houston. Though it took several years,
Gould eventually was able to orchestrate his election as President of the Katy.
Normally, Gould would simply buy controlling interest in a railroad and name himself
President, but the dilution of Katy stock and the lack of large private blocks
for sale prevented this approach. Instead, over several years he was able to inflitrate Katy
management with his loyalists who paved the way for him
to be named President in December, 1879.
With little personal ownership
of Katy stock, Gould could best reap the
benefits of its profitability by leasing it (in December, 1880) to the Missouri Pacific (MP) Railroad which he
controlled through a
large ownership position. MP was based in St. Louis and did not have a presence
in Texas. With accounting and operating policies tilted heavily
toward MP, its stockholders would enjoy the profits of the
combined enterprise while Katy stockholders would see their company simply
remain afloat -- not losing money but not profitable.
Gould directed MP to build from Denison
to Fort Worth, continuing
south to Hillsboro and Waco, eventually to turn
east toward Houston. As MP executed the expansion,
title to the new trackage was assigned to the Katy for compliance with Texas railroad ownership laws.
Publicly, particularly in the newspapers, the work was presented as an MP operation.
As each new MP depot opened, the Katy drifted further out of the public mind.
Although a shortage of rails delayed the final push by a few weeks, MP's tracks
entered Hillsboro in October, 1881.
Above: With
no mention of the Katy, newspapers followed
the progress of MP's construction from Fort Worth to Waco. The Post Office formally dropped the "Hillsborough" spelling in 1888, but as
these items demonstrate, "Hillsboro" had become the preferred spelling years
earlier.

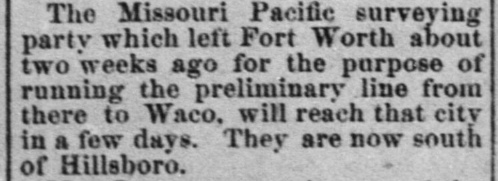

Left: The
Austin Weekly Democratic Statesman of January
13, 1881 discussed the progress of MP's survey party proceeding south from Fort
Worth. Center: The
Brenham Daily Banner of September 7, 1881
noted the tracks nearing Hillsboro.

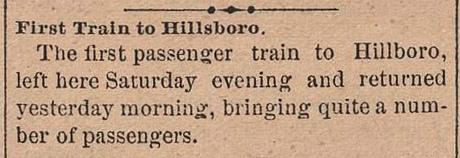

Right: The
Fort Worth Daily Democrat of October 11,
1881 reported on the first passenger train between Fort Worth and Hillsboro.
By the spring of 1881, Gould had begun
negotiations to take controlling interest in the International & Great
Northern (I&GN) Railroad, Texas' largest at the time. He had successfully
limited the I&GN's profitability by acquiring control of the two railroads
that provided its only feasible connection to St. Louis. On June 1,
1881, it was announced that Gould had acquired all of the I&GN common stock in a
two-for-one swap for Katy stock. Gould became President of the I&GN and leased
it to the Katy for 99 years. Why would Gould lease the I&GN to the Katy? Didn't the Katy own
the I&GN? Although Gould had used Katy stock to acquire the I&GN, he had
obscured the actual ownership by secretly placing the I&GN stock certificates
for safekeeping with his friend in Fort Worth, General Grenville M. Dodge (known
most famously as the Chief Engineer for the eastern part of the Transcontinental
Railroad.) Gould was concerned that
because the parent Katy corporation was based in Kansas, its direct ownership of
the I&GN might violate Texas law. The I&GN continued operating under its own
name to help present the facade that it was independently owned. For Gould, the less said about this topic, the
better.
MP's problem in Texas was that it could not comply with two elements of state law: it did not have
its
headquarters in Texas and it did not have a Texas railroad charter from the
Legislature. Ironically, neither did the Katy!
An 1870 Texas law had authorized the Katy to rely on its Kansas charter
for permission to build into Texas over its planned Red River bridge for the
purpose of connecting to the H&TC. As indicated by his I&GN stock finesse, Gould was aware
of the legal shortcomings of the Katy's situation in Texas, but he was willing
to bluff.
The Katy's Kansas
charter called for construction south through Waco and Austin to reach the
border with Mexico. Gould's argument for building south from Denison (not that he needed one) would be that he was merely following the
Kansas charter. Texas' 1870 law was not a Katy railroad charter, but
Gould knew that politicians always wanted more railroad service. It was
hard for Legislators to question the legality of MP's southward march while also
making speeches to their constituents at each town's celebration of new MP
service.
MP continued building south from Hillsboro to Waco,
Temple and Taylor,
where construction paused in 1882. Taylor was also served by the I&GN, and
Gould built a Division Headquarters facility there serving both railroads. In
1886, Gould resumed MP's construction toward Houston.
 |
In late 1886, Gould directed MP to build branch lines between
Greenville and Dallas,
and between Dallas and Hillsboro. Gould already had a Katy line from Denison
through Greenville to Mineola, so these new
branches
would provide a connection between Denison and Dallas via Greenville, continuing to the
MP main line at Hillsboro. Typical for new
branch lines, MP chartered new railroads to accomplish the
work. For the Dallas - Hillsboro branch, the Dallas & Waco Railroad was
established in late 1886 as a subsidiary of the Katy. Financial and legal issues
delayed constuction but the line was finally
completed in 1890.

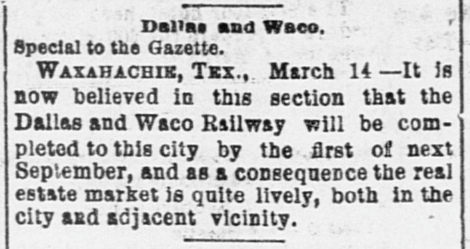

Left:
The Fort Worth Gazette of March 15, 1888 carried this story from
Waxahachie discussing the local real estate market being stimulated by
the approaching rails of the Dallas & Waco. It would be the town's
second railroad in two years, the other being the H&TC's Ft. Worth & New
Orleans Railroad between Ft. Worth and Garrett on the H&TC main line near
Ennis. |
At the end of 1887,
construction stopped as Gould's vast rail empire entered a period of financial
turmoil. The financial issues were mostly elsewhere, but in Texas, Gould's problem was the election of James S. "Jim" Hogg in November, 1886 as
Texas Attorney General. The focus of Hogg's campaign had been his claim that
Texas railroads were guilty of poor service, poor facilities, price-fixing and
other violations of their charters and other state laws. During 1887, Hogg
began filing lawsuits against various railroads including the I&GN and the Katy.
Deferred maintenance had caused the I&GN to deteriorate leading to poor service and routine
accidents. Gould was unconcerned; travelers were thankful for any
railroad service, particularly in rural towns.
But Texas railroad charters required companies to maintain good facilities and good
service, so Hogg wasted no time going after Gould.
Katy stockholders were
also going after Gould having recognized that he was draining Katy profits into
MP under the lease. They had difficulty summoning a quorum for an official meeting, in part
because Gould worked diligently to prevent such a meeting.
Despite Gould resorting to judicial intervention, the stockholders eventually
prevailed and were able to hold a meeting in May,
1888. They fired Gould for malfeasance associated with the terms of MP's lease
and then promptly sought bankruptcy protection to obtain a declaration that MP's lease
was void. Eventually, the Texas Supreme Court confirmed the termination of MP's
lease while also declaring the Katy to be a "foreign" railroad
because it lacked both a Texas charter and a Texas headquarters. This created an
enormous mess pertaining to Katy assets and operations in Texas because
everything beyond Denison was effectively illegal. It was left to the
Legislature to sort it all out.
Above: With Gould dismissed
and the MP lease voided, the Katy was under protection of a Kansas bankruptcy
court which had permitted it to continue its operations and branch line
construction while waiting for the Texas Legislature to act. The Dallas & Waco
had stopped at Waxahachie in early
1888, but it had built as far as Milford by the end of 1889. This prompted the Waxahachie Democrat
(quoted left by the
Hillsboro Mirror of January 29, 1890) to
speculate on the branch line from Dallas becoming the main line (i.e. instead of
the Katy's Hillsboro - Denison route via Fort Worth.)

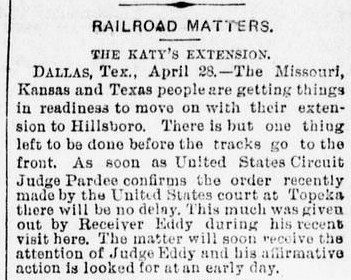

By April (center,
Galveston Daily News, April 29, 1890) it
was becoming clear that there would be no impediments to finishing the Dallas & Waco
branch to Hillsboro.

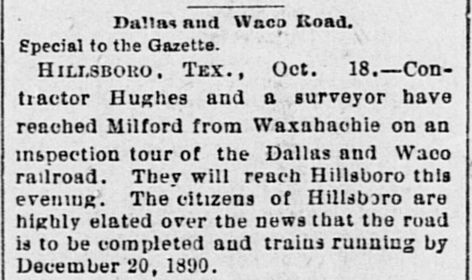

Right: The Fort Worth Daily
Gazette of October 19, 1890 predicted two additional months to
complete the track-laying into Hillsboro. Later newspaper reports indicate that
delays pushed the commencement of Dallas - Hillsboro service into
February, 1891.
The Katy would continue
to operate in Texas under its Receiver, Judge Eddy, until it could be
reorganized pursuant to a new Texas charter to be enacted by the Legislature.
The Katy asserted ownership of the I&GN, intending to fire Gould from his
position as I&GN President, but clever legal shenanigans by Gould created enough
delay for him to come up with another plan. He approached Hogg directly to admit that the I&GN was owned by the Katy
(which Hogg had speculated but couldn't prove) and he reminded Hogg that the
Katy was a "foreign" railroad that might soon own the I&GN, depending on what
the Legislature did. Hogg was vigorously opposed to the idea of a "foreign"
company owning Texas' largest railroad and thus, he filed an injunction to
prevent the Katy from taking any action to oust Gould. Keeping the I&GN out of
the Katy's hands would ultimately deliver it to Gould.
The Legislature finally passed a
new Katy charter law on October 28, 1891 granting rights to a newly created
Texas subsidiary of the parent Katy corporation. The Texas-based Katy subsidiary
would be headquartered at
Denison and it would own most of the Katy's current Texas rail lines, but
not the I&GN. Gould's plan had worked; the
Legislature had soured on the idea of allowing the Katy to own the I&GN, so the
Katy had little choice but to sell it back to Gould for the paltry sum of
$350,000. Why so little? The Katy couldn't sell it to an out-of-state railroad without
incurring the wrath of Hogg and the Legislature, a storm the newly independent
Katy would avoid at all cost. Texas railroads big enough to buy the I&GN would
already be competing with it, hence such acquisition would violate
Texas' railroad competition laws. And fear of angering Gould inhibited interest by individual rail investors. When it came time to complete the
enactment of the new Katy charter bill, it was signed into law by Texas Governor ... Jim Hogg! His successful campaign
against the railroads had boosted his political standing, enabling him to win the
Governor's race of 1890. During the campaign, Hogg proposed the creation of a
Railroad Commission of Texas (RCT), and a law was promptly enacted in 1891
creating the agency.
 |
The next railroad into Hillsboro was the Cotton
Belt in February, 1888. It had originally been chartered as the Tyler Tap Railroad in 1871 to bring rail service to
Tyler by "tapping" the Texas & Pacific
(T&P) Railway at
Big Sandy, which
occurred in 1877. Two
years later, the name was changed to the Texas & St. Louis (T&SL) Railway when a 107-mile segment was built from
Big Sandy to Texarkana extending into Arkansas.
Right: The T&SL's
first ad in the Galveston Daily News
ran in the issue of January 21, 1881. It is historically significant
because it shows the T&SL claiming the moniker "Cotton Belt Route".
While "cotton belt" was a common geographic and geopolitical term for
various cotton-producing areas in the South, this is the first known
instance of the T&SL using "Cotton Belt Route" as a marketing
nickname for
the railroad. The public embraced it; the nickname would reference an operational
Texas railroad for the next 110 years.
Gould viewed the T&SL as
a genuine threat to his business, leading to a significant right-of-way
skirmish in Waco. By 1883, the T&SL was operating from Bird's Point, Missouri on
the Mississippi River to Waco and Gatesville. This expansion overextended the
T&SL and it entered receivership in 1884
(which probably kept it from falling into Gould's hands.)
In February, 1886, the St. Louis, Arkansas & Texas (SLA&T) Railway was created
by the bankruptcy judge to become the new Cotton Belt, going against
the advice of T&SL President Sam Fordyce who believed unsolved
operational issues would doom the enterprise. Despite Fordyce's
concerns, he became President of the SLA&T and within a year had decided
to compete with Gould by building new branch lines in north Texas, one
of which would be from Corsicana to
Hillsboro.
Left: The
Cotton Belt -- identified only by its nickname -- aggressively promoted
its faster route to Memphis and St. Louis with "No Change of Cars..." This ad
appeared in the Hillsboro Mirror
of January 15, 1890, but it was generic; it did not mention any Texas
towns. |
 |
The MP (Katy) line
from Fort Worth had stimulated commerce and population in Hillsboro, but the town
lacked a direct route to the northeast toward St. Louis, Memphis and the
east coast. Fordyce's Corsicana - Hillsboro branch line would create a route via Texarkana
that was significantly faster for Hillsboro residents than what Gould could offer. Railroad committees in
both Hillsboro and Corsicana backed Fordyce's plan, and they
agreed that the branch should take a
southern route through the community of Dresden.

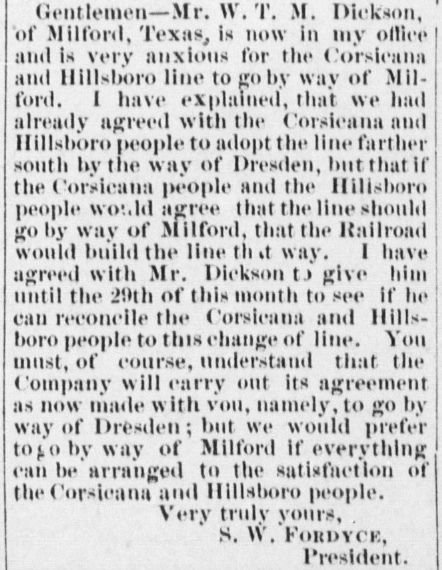

Left, Top: The
Hillsboro Reflector of May 26, 1887
printed this letter sent by Fordyce to the railroad committees to make them aware of strong interest on the
part of the citizens of Milford to be on the proposed SLA&T branch line.
Milford was thirteen miles northeast of Hillsboro, somewhat out of the
way for an optimum route from Corsicana. Yet, Milford's representative had
been able to convince Fordyce of the value of routing through there. When construction actually occurred in 1887-1888, neither Milford
nor Dresden was on the branch line. Instead, the route was a more direct path through Blooming Grove and
Mertens. Milford would gain rail service in
1889 when the Dallas & Waco built through the community. Dresden, thirteen miles southwest of Corsicana, never obtained rail service.
Left, Bottom: The
Temple Daily Times of February
9, 1888 announced inauguration of Cotton Belt service to Hillsboro from
Corsicana.

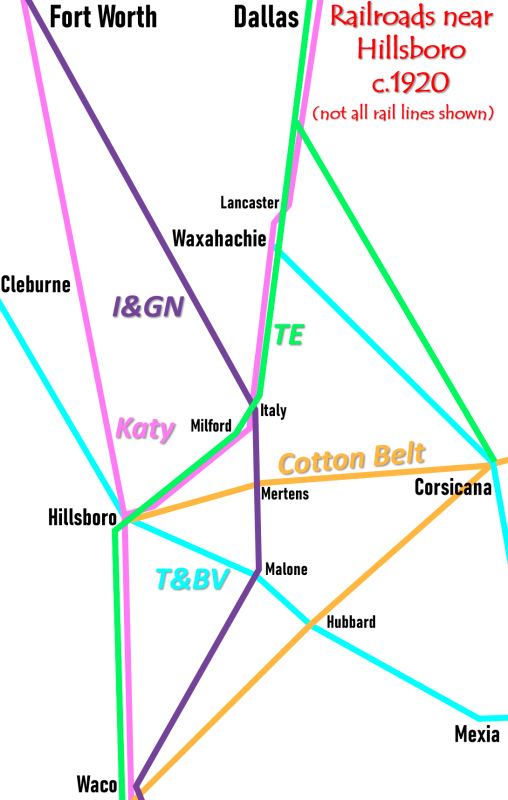

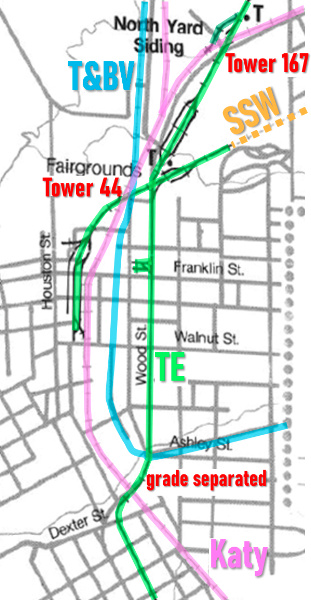

Right:
This map highlights railroads through Hillsboro c.1920. In 1913, an
electric interurban subsequently known as the Texas Electric (TE) built
into Hillsboro, crossing the Katy at grade on the north side of town.
That crossing became the location of Tower 167 in 1931. The TE also had
grade-separated crossings of the Katy and the T&BV on the south side of
town. |
 |
The SLA&T branch lines
forced Gould's hand and culminated in a secret 1888 agreement with Fordyce for the MP and Cotton Belt to cooperate on
traffic through Texarkana. Gould gained financial leverage over
the SLA&T with loans and stock purchases, positioning him to guide its
reorganization when it became insolvent in 1889 (as Fordyce had
predicted.) The next bankruptcy plan created a new railroad dominated by
Gould known as the St. Louis Southwestern Railway (SLSW or SSW), but
more commonly just Cotton Belt. Gould installed his younger son
Edwin as President of the SSW, and Edwin held that title until his
retirement in 1925.
 |
The next railroad into Hillsboro was the Trinity & Brazos Valley (T&BV) Railway chartered
there in 1902 to build southeast to
Mexia, osensibly heading for
Beaumont. The Mexia line was completed in 1904
along with a northwest extension from Hillsboro to
Cleburne. The T&BV was acquired
on August 1, 1905 by the Colorado & Southern (C&S) Railway as part of a grand plan by
C&S Board member Benjamin Franklin Yoakum to build a major north / south line
between Fort Worth and
Houston. Yoakum had already initiated the project with Rock Island tracks from
Fort Worth to Dallas in 1903. Yoakum wanted
the T&BV for its charter because getting a new one from the Legislature
would encounter stiff opposition from other railroads.
Yoakum, a
native Texan born near Mexia,
had advanced from a track gang on the I&GN to become
CEO of both the Chicago, Rock Island & Pacific (CRI&P) Railroad and the
St. Louis & San Francisco ("Frisco") Railway. He was forming a
Houston-based competitor
to Southern Pacific along the Gulf Coast but needed a connecting route to
his Frisco and Rock Island tracks in north Texas.
Both were major Midwest railroads, but the freight they brought south into Texas
was being handed over to competitors to reach
export facilities in Houston and Galveston.
Yoakum had befriended Edwin Hawley, a well known railroad investor and
the principal owner / financier of the C&S. Teaming with Hawley added
financial heft to Yoakum's railroad play in Texas. Hawley was willing to
buy the T&BV because it would eventually yield a C&S route to Houston
and Galveston. The C&S already had Denver - Fort Worth service over
Texas tracks owned by its Fort Worth-based subsidary, the Fort Worth &
Denver City (FW&D.) The new T&BV line
would close the gap from Fort Worth to Houston. At Yoakum's request, Hawley sold half
interest in the T&BV to Rock Island.
To extend the T&BV
toward Houston and Dallas, Yoakum built across the H&TC
tracks at Mexia (the eventual site of
Tower 63) toward the community of Brewer, eleven miles
distant. Brewer (which Yoakum renamed Teague, his mother's maiden name)
was at the midpoint of a Houston - Dallas route that Rock
Island surveyors had mapped in 1903. It would host a major yard and maintenance shops for
the T&BV. Northward construction from Teague stopped at Waxahachie
where Yoakum obtained trackage rights on the Katy into Dallas. Southward
into Houston, the T&BV connected with the Houston Belt & Terminal Railway, a property
Yoakum had founded to build a union depot in
Houston and to function as a switching railroad.

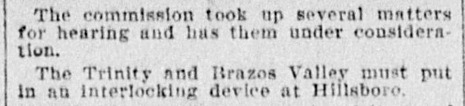

 Right:
The Houston Daily Post of
February 21, 1903 reported that RCT had ordered the T&BV to build an
interlocking tower at Hillsboro. The T&BV had to pay the entire capital
expense because its tracks arrived at the crossing after enactment of the 1901 state
law giving RCT the authority to mandate interlocking plants. Prior to
the T&BV, RCT had not required an interlocker for the SSW / Katy
crossing at Hillsboro.

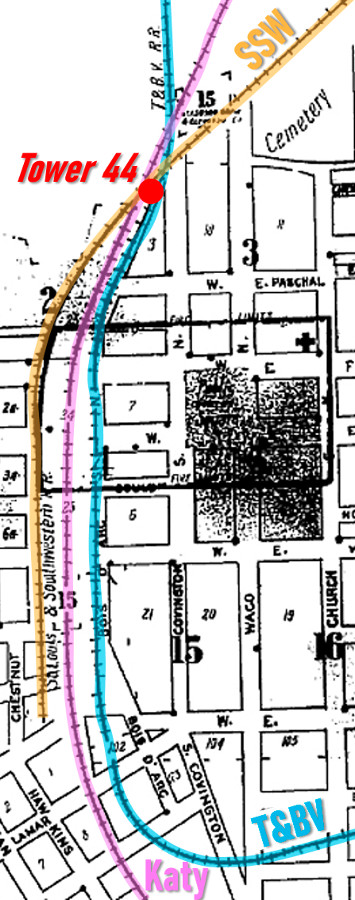

Left:
This index for the 1911 Sanborn Fire Insurance map set of Hillsboro has
been annotated to show the parallel paths of the steam railroads through
Hillsboro and the location of Tower 44 where they crossed on the north
side of town. RCT commissioned Tower 44 on July 7, 1904 as a mechanical
interlocker with 24 functions. All three railroads, the Katy, Cotton
Belt (SSW) and T&BV, shared the tower's
recurring operations and maintenance (O&M) expenses, but the
specific apportionments are undetermined.
That same day, July 7, 1904, RCT
also commissioned towers at Cleburne, Malone and
Hubbard. Like Hillsboro, all were on the T&BV's Cleburne - Mexia
line. The T&BV likely ran a special passenger train to carry the
inspector and supporting railroad personnel along the route to optimize
the time that would otherwise be required to inspect all four towers.
Their construction had begun more or less simultaneously,
and RCT had numbered them consecutively west to east along the T&BV line --
Towers 43 through 46. It is unsurprising that they were ready for
commissioning in the same timeframe.
Typically, the railroad that
funded a tower's capital expense would also take O&M
responsibility, but this was not the case for the T&BV at any of the
four towers. It was only two years old and lacked experience in the
development and operation of interlocking towers. All four were erected
and commissioned prior to the C&S acquisition. At Tower 44, the Katy had
the O&M responsibility (per 1916 RCT report.) |
Above: Barriger took
this photo of Tower 44 sometime in the latter 1930s after the T&BV had
been abandoned. The hut at far right sits atop the T&BV right-of-way
beside the tower. Barriger's view is to the north from the rear platform of
his business car on a southbound Katy train. The Cotton Belt tracks
cross the Katy just beyond the tower.

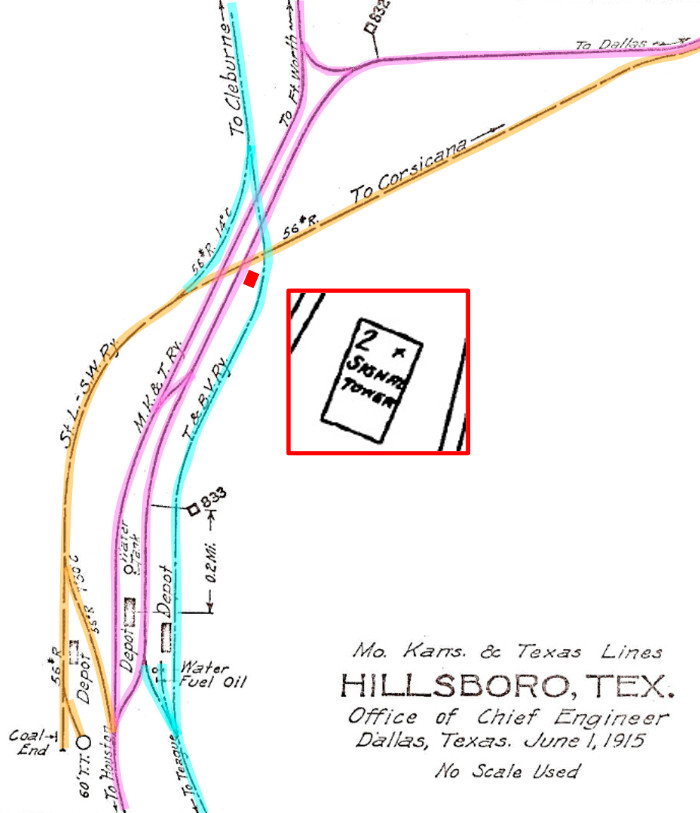

Right: This track chart of Hillsboro (Ed
Chambers collection) was produced in 1915 by the Katy's Office of
Chief Engineer. It shows several connecting tracks among the railroads, and indicates that the two parallel Katy
tracks through town combined to a single track south of the Katy
depot. Although the electric interurban was in operation through
Hillsboro in 1915, its tracks do not appear on this chart. The red
rectangle shows the location of
Tower 44 which is depicted on the 1924 Sanborn Fire Insurance map of
Hillsboro as a 2-story Signal Tower with a door on the north side.
Although external staircases on towers were sometimes illustrated on
Sanborn maps (e.g. Towers 9 and 41 in
Navasota), Sanborn's cartographer did not do so here. |
 |
 |

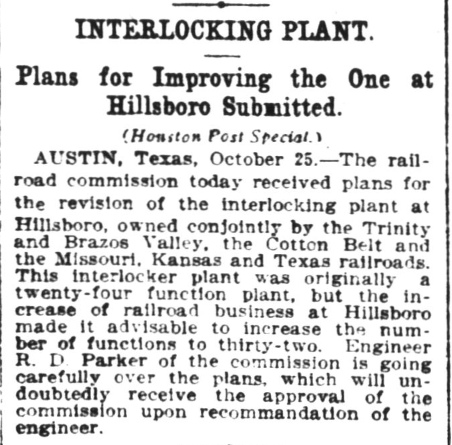

Left: A news report in
the Houston Post of October
26, 1910 discussed plans submitted to RCT a day earlier for expansion of Tower 44's
interlocking plant. The plant's function count would increase from 24 to
32 to account for signals, switches and derails necessitated by a new
T&BV track crossing the existing rail lines to serve a cotton
compress.

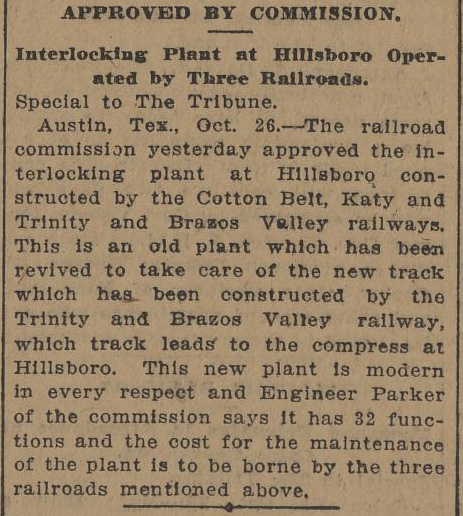

Right: Although the
Post story described the plans
as being "received" on the 25th, the
Galveston Tribune of October
26 reported
that RCT had "approved" the new plans on the 25th. The effort would
result in a new "modern" interlocking plant to replace the "old plant". |
 |
 |
 The
T&BV was in receivership from 1914 until 1930 when the Burlington - Rock
Island (B-RI) was created as a paper railroad to take ownership of the
T&BV's assets. The B-RI was owned in equal shares by the Burlington
system (successor to the C&S) and Rock Island. Burlington assigned its
B-RI ownership to the FW&D. Rock Island's half interest
(acquired from C&S in 1905) was assigned to its Texas subsidiary, the Chicago, Rock Island &
Gulf. B-RI quickly abandoned unprofitable tracks from Hillsboro to
Cleburne (1932) and Hubbard (1935.) The tracks from Hubbard to Mexia
were
abandoned in 1942.

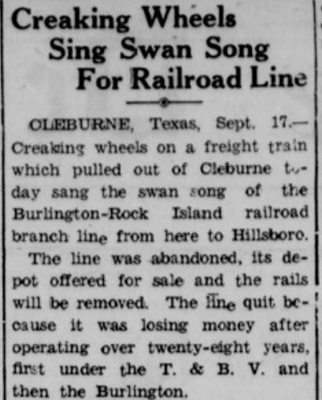

Left: On September 20, 1932, the
Delta Courier of Cooper, Texas
carried this story on B-RI abandoning its Cleburne line.

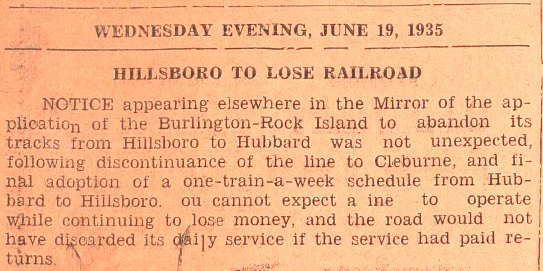

Right: The Ennis Daily News of June
19, 1935 opined on the demise of the B-RI line from Hillsboro to
Hubbard. This removed the last of the T&BV (B-RI) tracks at Hillsboro.
Several
sections of Hwy. 171 between Mexia and Cleburne are built on the former
T&BV right-of-way. State Highway 22 occupies the T&BV right-of-way
between Interstate 35 and downtown Hillsboro. The T&BV branch between
Mexia and Teague was abandoned in 1976, but its main line from Teague north to Waxahachie and south to Houston remains operational,
now owned by
Burlington Northern Santa Fe (BNSF.) |
After being freed from the MP lease by the Texas
Supreme Court, the Katy remained an independent railroad for nearly a hundred
years. It was acquired by Union Pacific (UP) in 1988 and merged back into MP which UP had acquired in 1982.
MP continued operating under its own name until 1997 when UP consolidated all of
its railroads under the UP name. Thus, the tracks through Hillsboro originally
built by MP but owned by the Katy now serve as a major north
/ south line for UP.
 |

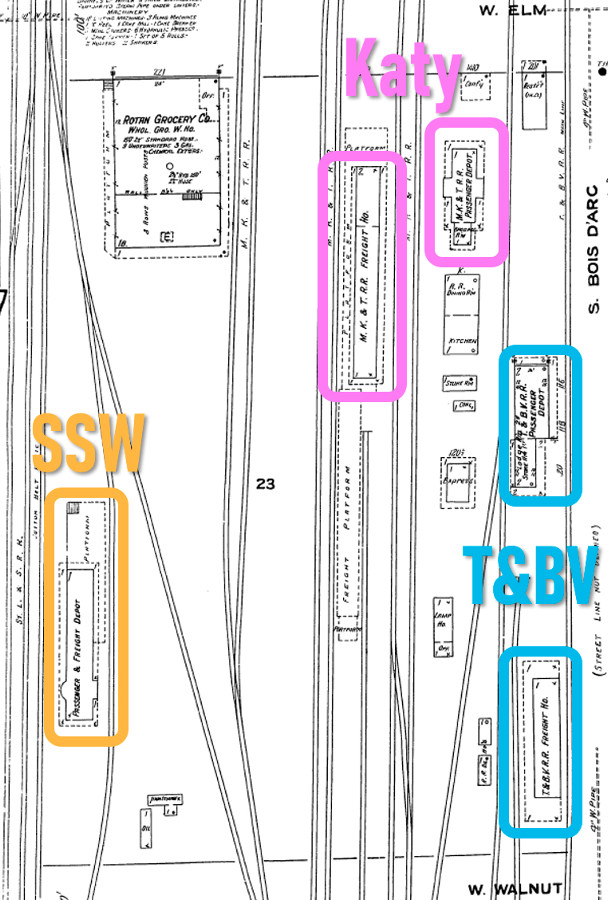

Left: This
snippet from the 1911 Sanborn Fire Insurance map of Hillsboro has been
annotated to show that each railroad built its own freight and passenger
depots, except the Cotton Belt, which built a combination depot.
Hillsboro did not have a Union Depot, and because the railroads had
parallel main tracks and sidings through town, walking between passenger
depots was a potential safety issue. In 1906, RCT reported an average of 53 trains per day past
Tower 44, but the frequency of operations was probably higher during daylight hours near
the depots due to switching movements that did not need to go as far
north as Tower 44.
The Texas Legislature
granted RCT authority to order railroads to collaborate on construction
of union passenger depots wherever RCT deemed it to be a worthwhile
expense in the interest of the traveling public. Hillsboro was Exhibit A
for a town where construction of a union depot would improve safety and
convenience for a significant number of daily travelers. RCT ordered the
three railroads to build a union depot at Hillsboro, but the order was
met with resistence.

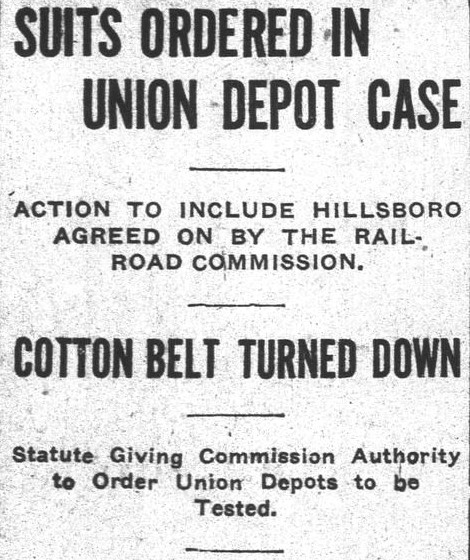

Above: The
Lancaster Herald of September 30,
1910 reported on RCT's decision to file suit against the railroads for
failure to execute orders to build union depots at Hillsboro and Dallas.
The railroads at Dallas soon complied with RCT's order. |

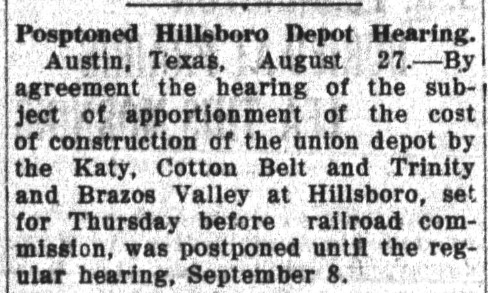

Above Left: Four years later,
the
Brenham Daily Banner of August 27, 1914
reported postponement of a hearing planned by RCT to discuss the apportionment
of costs to the railroads for a union depot at Hillsboro. By this time, the
railroads had generally agreed to build a union depot but were vigorously opposed
to RCT's cost

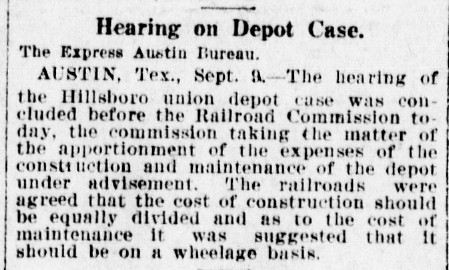

sharing plan. Above Center: The postponed hearing took place on September 9
as reported by the San Antonio Express
of September 10, 1914. While the railroads had agreed to share the capital cost
of the depot, no agreement had been reached for the cost of staffing and

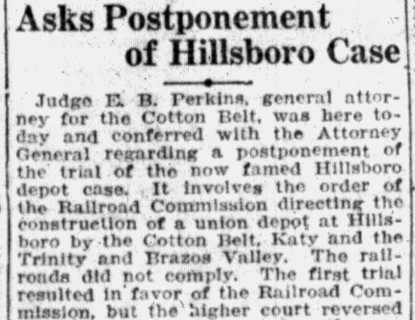

maintaining it. Above Right:
Eighteen months later, the Austin Statesman and
Tribune of April 12, 1916 reported that the Cotton Belt was
conferring with the Attorney General regarding postponement of the upcoming
district court trial in the "famed Hillsboro depot case." The story goes on to
explain that RCT had won the original trial ruling but an appellate court had
reversed the lower court because it deemed the cost sharing formula to
be unfair. A postponement of the trial was inevitable because the Katy was now
under the protection of a Federal bankruptcy court and thus could not be forced
to answer a state court summons. The Katy was eventually allowed to
participate in the trial.

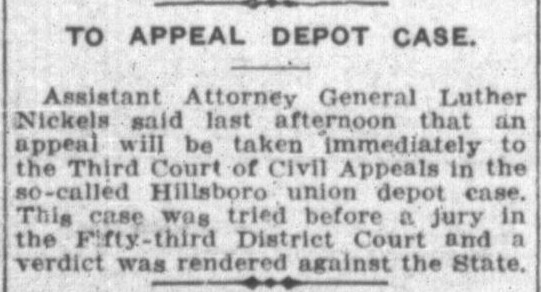

Below Left:
The Austin Statesman of November 24,
1916 reported that the State of Texas would appeal the ruling of the trial court
in the "so-called Hillsboro union depot case." The case was tried before a jury

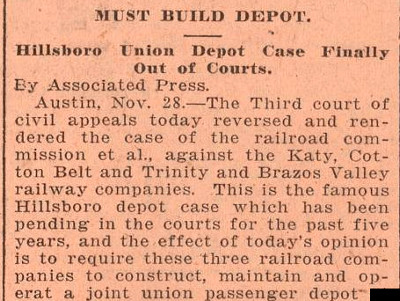

in Austin. Below Center: Proclaiming
a year later that "Hillsboro Union Depot Case Finally Out of Courts"
(a subhead no one believed),
the Galveston Tribune of November 28,

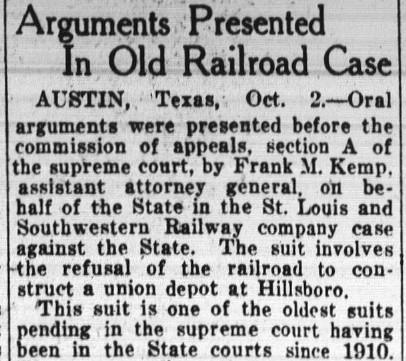

1917 reported the State had won its appeal. Below
Right: The Houston Post
of October 3, 1923 reported on oral arguments presented to an appellate
commission assigned by the Texas Supreme Court to hear the "Old Railroad Case."
Significant delay was attributable to the
nationalization of the railroads during World War I under the U. S. Railroad
Administration (USRA), which had commenced one month after the November, 1917
appellate ruling. The USRA had the power to force railroads to share
depots. Whether this occurred in Hillsboro is undetermined, but it seems likely. The USRA was decommissioned
by the Transportation Act of 1920 which also granted the Interstate Commerce
Commission significant powers over the railroads. The Katy (1915 - 1923) and the
T&BV (1914 - 1930) were both in Federal receivership which could also have
inhibited any attempt by state courts to resolve the case. The Katy emerged from
bankruptcy on April 1, 1923.
So how did it all end?
Under the headline "Hillsboro Depot Case To Be Tried Here; Set For December
8", the Austin Statesman of November 19, 1924 explained that yet another
trial was to be held regarding the apportionment of expenses for building and
maintaining a union depot at Hillsboro. The last line of the story was "Any
way that the case is decided by the trial court, it will again be appealed to
the higher courts." That was undoubtedly true, but no subsequent newspaper
stories about the Hillsboro depot have been found. The case seems to have simply
disappeared. The operations of the T&BV during its lengthy receivership were
probably cut back, so its connecting passenger count at Hillsboro may have been
small. Cotton Belt service to Hillsboro was on a lightly used branch line that
terminated there, so the number
of inconvenienced passengers might also have been tiny. In the end, only the Katy had significant passenger traffic
through Hillsboro, and its depot was adequate for that purpose. It's possible
that the railroads simply agreed to use the Katy depot (which might have been
tested during the USRA period) and forego new
construction entirely. No evidence has been found to indicate that a union depot was
ever built at Hillsboro.

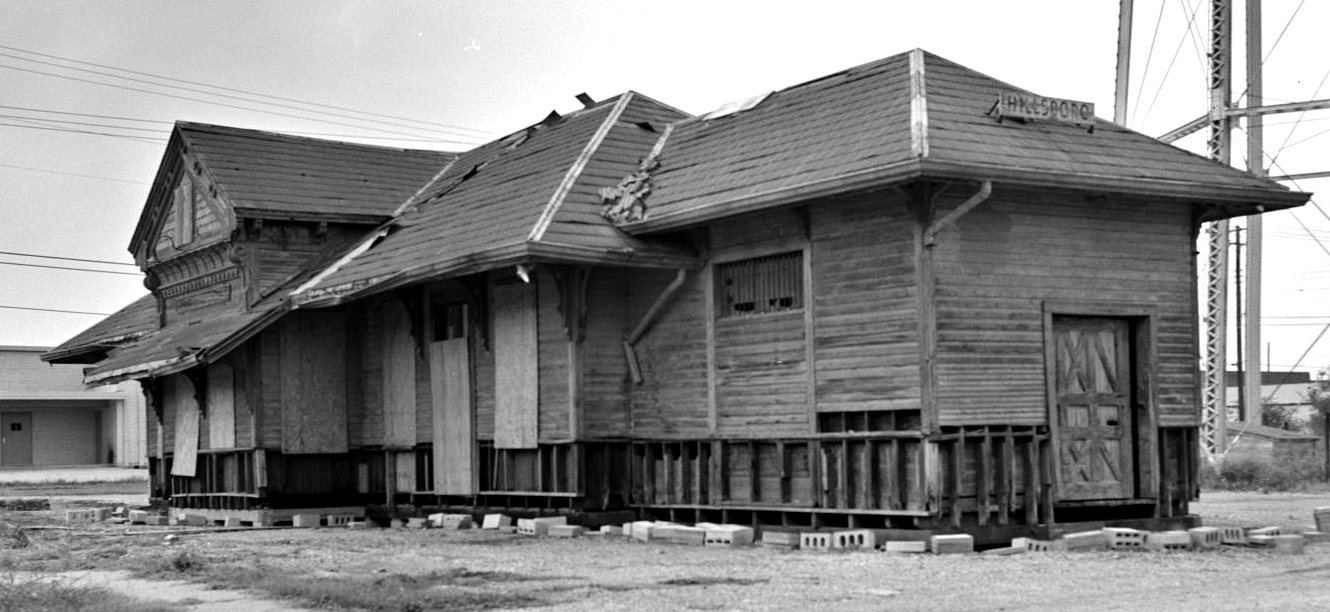

Above: In this undated photo,
the Katy depot in Hillsboro had seen its better days and may have been headed
for demolition. (Texas Historical Commission image)

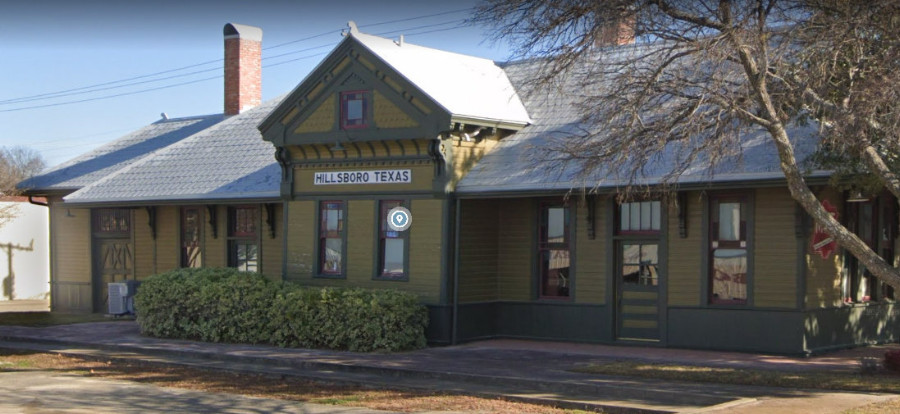

Below: Instead, the depot was restored to host the local
Chamber of Commerce and it also serves as the town's Visitor's Center. (Google
Street View, 2019)
 |
In 1913, the Southern Traction Co. completed an electric interurban rail
line from Dallas to Waco that passed through Hillsboro. In addition to
moving passengers, the interurban also hauled box cars and package
freight. At the north edge of Hillsboro, the interurban crossed the Katy
line to Dallas at grade. At some point, a connecting track was added
at the crossing to facilitate freight exchanges between the Katy and the interurban. In 1917, the Southern Traction Co.
merged with the Texas Traction Co. to form the Texas Electric (TE)
Railway, the largest interurban system in Texas. On February
10, 1931, Tower 167 was commissioned by RCT as a 4-function mechanical
interlocking plant to control the TE / Katy grade crossing.
TE employees were responsible for operating the controls, but precisely how this
was implemented remains undetermined. The installation appears to have
been part of a larger effort to incorporate interlocking
plants at TE crossings of steam railroads, the others being
Tower 165 (Corsicana),
Tower 166 (Plano) and
Tower 174 (Italy.)
Left: This annotated
snippet of a larger map ((c) Johnnie Myers, 1953) shows the TE / Katy
crossing at Tower 167 on the north side of Hillsboro. After the SSW was
abandoned between Hillsboro and Corsicana in 1940, the TE began using
the SSW tracks to reach warehouses and businesses that still wanted
service. The TE also repurposed the abandoned SSW depot. The TE crossed the SSW at
grade near Tower 44 but the crossing was not part of Tower 44's controls
and there's no evidence it was ever interlocked. The short east / west green lines on the
map near Franklin St. mark the location of the TE station at the corner
of Waco St. and Fancher St. (now the home of
R&K Cafe II.) At the south end of Hillsboro, the TE had
grade-separated crossings of both the T&BV and the Katy, passing beneath
both lines. Although the
map shows Wood St. hosting the TE rails, the 1925 Sanborn Fire Insurance
map of Hillsboro identifies it as Waco St., a name still in use today.
The TE ceased operations at the end of 1948.

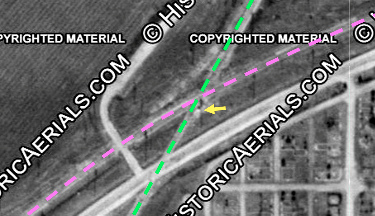

Left:
The TE (green) / Katy (pink) grade crossing is shown in this 1938 aerial
image ((c)historicaerials.com.) The yellow arrow points to the Tower 167
control cabin south of the diamond. Under magnification, the cabin and
its short shadow to the north are more apparent.
|

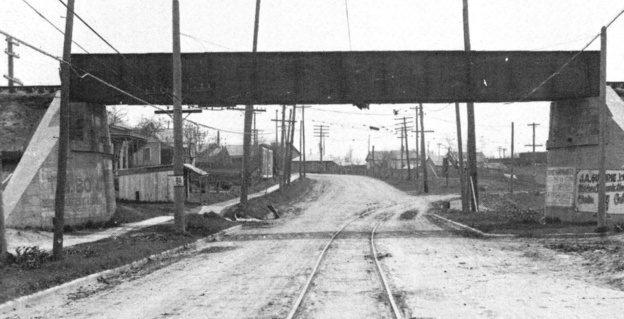

Above: These two photos (from
the Johnnie Myers Collection) are each described as views of the TE passing
beneath the T&BV at the south end of Hillsboro, but only the one at
left is correct. This is true
particularly because its caption in the book in which it appears was written by
Johnnie Myers, an expert on the TE and the author of the book,
Texas Electric Railway by Johnnie Myers (1982,
Bulletin 121, Central Electric Railfans' Association.) Myers' caption reads "At the south end of Hillsboro, on the Waco line, Texas Electric
turned right after passing under the Trinity and Brazos Valley Railway bridge."
This description aligns with the fact that the T&BV is known to have crossed
over Waco St. (which hosted the TE rails) at the south end of Hillsboro. The
unidentified photographer was facing south and the photo shows the location
where the TE departed the roadway to curve to the southwest toward its next
underpass at the Katy tracks about an eighth of a mile distant.

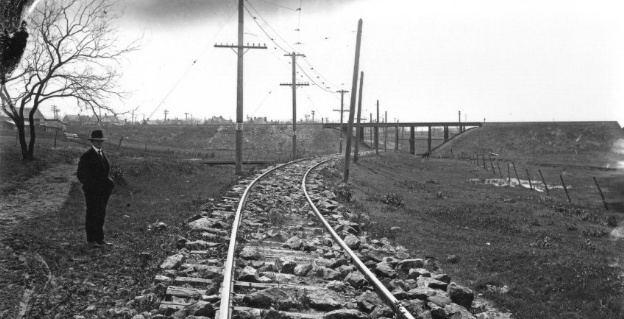

The
undated photo above right
showing the TE passing
beneath the Katy railroad on the south side of Hillsboro was taken by William "Frank" Rogers.
The
photo was published elecronically on July 8, 2020 in an article from the official blog of the Plano Conservancy for Historic
Preservation. The
article discusses Rogers' photography of the TE, but its commentary about
this photo concludes with "In the distance, the tracks pass underneath a
Texas and Brazos Valley Railroad trestle."
(emphasis added, the 'T' was for Trinity, not Texas!)
Perhaps the author did not realize that the TE passed under both the
T&BV and the Katy on the south side of

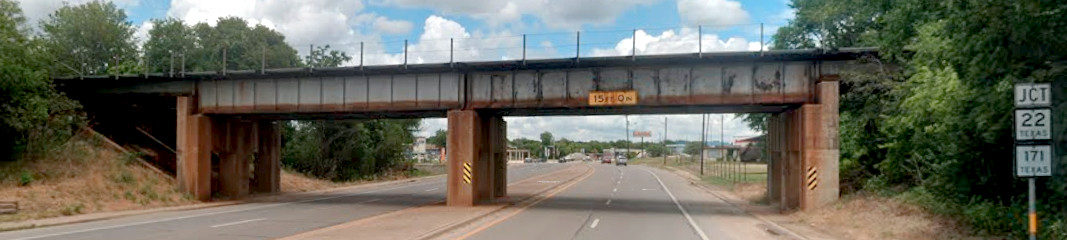

Hillsboro. The photo shows the Katy bridge, which still exists, with Rogers' camera facing
north from a location southwest of the bridge. Note rooftops, utility poles and
towers beyond the left fill toward downtown Hillsboro, details that would not
appear if this photo faced south into the rural landscape outside of Hillsboro.
The
curve in the immediate foreground southwest of the Katy bridge still exists,
although a highway, not TE rails, now sits atop the right-of-way.

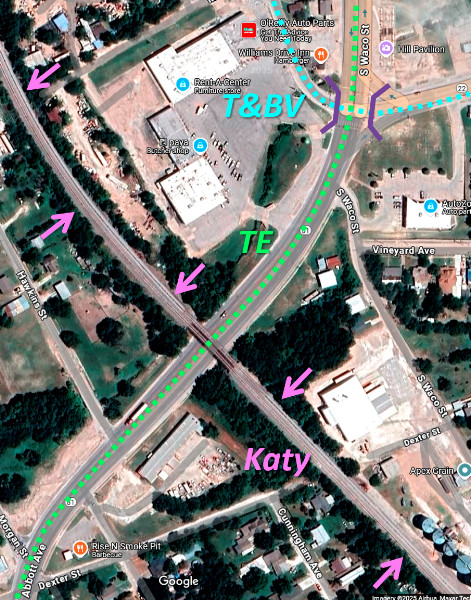

Below Left: This 2023
Google Earth image has been annotated to show the paths of the TE, Katy and T&BV
(B-RI) on the south side of Hillsboro. South of the TE / T&BV crossing (note
purple bridge abutments added to depict the bridge that no longer
exists) the former TE right-of-way curves southwest to become Abbott Ave. which
passes beneath UP's former Katy tracks. This is the same curve visible beyond the bridge in the photo above
left showing the TE making a southwest turn from the roadway
while S. Waco St. continues ahead and curves to the left
(southeast.) The satellite image reveals that south of the curve into Abbott
Ave., the remnant of S. Waco St. has been relegated to
secondary status. Frank Rogers' camera would have been located at the bottom left corner of this
image looking generally north.

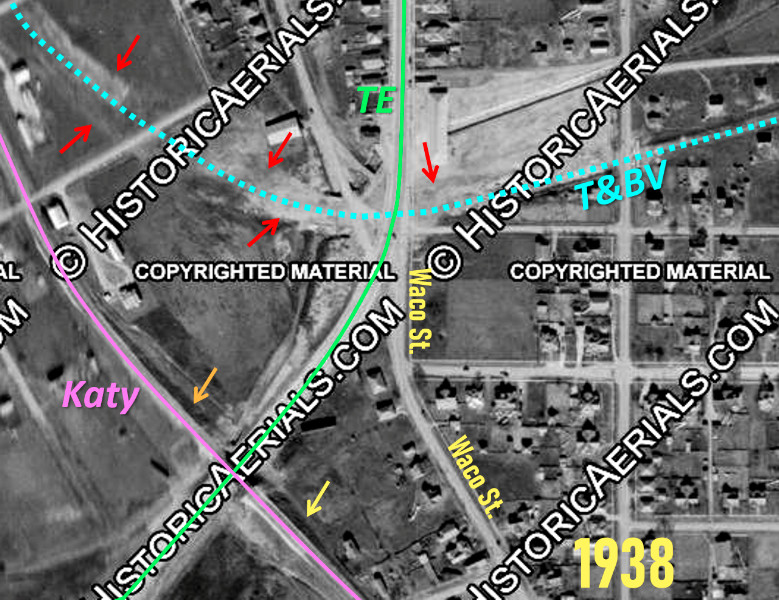

Below Right:
This annotated 1938 aerial image ((c) historicaerials.com) shows a similar view
on the south side of Hillsboro. The last segment of the B-RI (T&BV) through
Hillsboro was abandoned (to Hubbard) in 1935, and this image suggests that the
right-of-way had been cleared (or such operations were underway) by 1938. The
red arrows show significant disturbed earth along the right-of-way consistent
with removal of the earthen approaches and the T&BV bridge over S. Waco St. If the approaches were intact, shadows cast to the north
should be apparent, but none are present. This contrasts with the obvious
shadows produced by the Katy's earthen fills (yellow and orange arrows) leading
to its bridge over the TE. Comparing the Katy fills, the westerly fill (orange arrow) has
a shadow that tapers off over a longer distance than the easterly fill (yellow
arrow) which appears shorter and more pronounced. This is consistent with Frank
Rogers' photo (above right)
showing the larger east (right) and smaller west (left) fills.

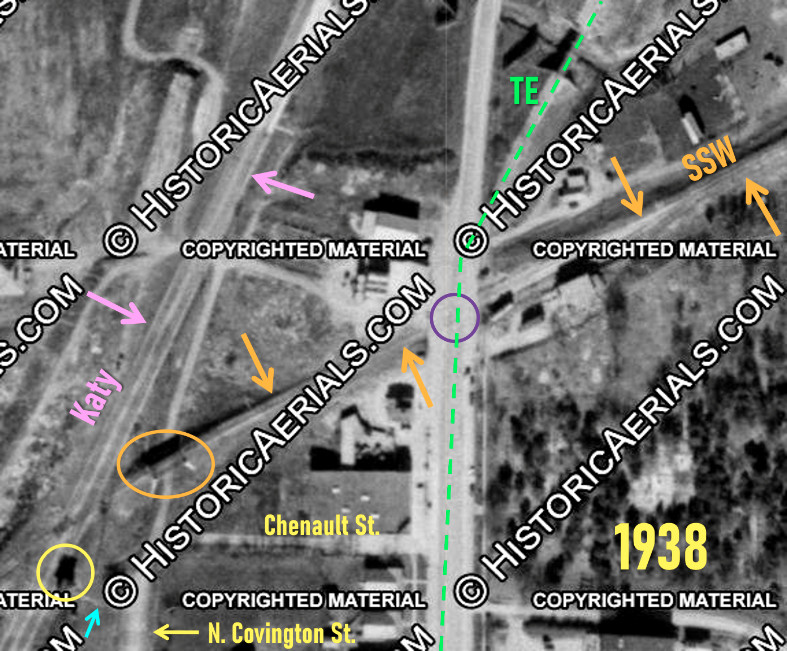

Above Left: This annotated
1938 aerial image ((c)historicaerials.com) shows the tracks near Tower 44
(yellow circle.) Note the footpath (blue arrow) used by operators to access the
tower from N. Covington St. The Cotton Belt (orange arrows) entered Hillsboro on
a southwest heading, crossing the TE at grade on Waco St. (purple circle.) Near the Katy
tracks, the Cotton Belt had a bridge (orange oval) above a roadway that
appears to be an extension of N. Covington St. north of its intersection with
Chenault St. (an extension that no longer exists.) This aerial image was captured
after the T&BV (B-RI) was abandoned through Hillsboro in 1935. Its former
right-of-way beside the tower is difficult to discern. The SSW / TE grade
crossing on Waco St. was not interlocked because the tracks were on a vehicular roadway.
Automated
grade crossing signals with lights and bells had been developed (and used in
Texas by
1933) to warn vehicles
of approaching trains, and this was deemed an acceptable safety system for the
TE where it shared a roadway. Whether grade crossing signals were used here is
undetermined. TE trains were always moving slowly anyway since the interurban station
was only a quarter mile south.

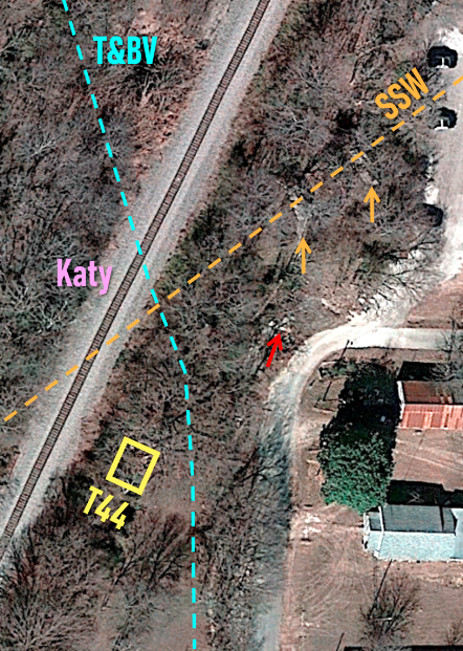

Above
Right: This 2022 Google Earth satellite view of the immediate
vicinity of the site of Tower 44 shows there is now only a single track rail
line. This is in stark contrast to the Katy double tracks visible in Barriger's
photos. It appears that the abutments for the SSW bridge (orange arrows,
corresponding to the orange oval at left) may have survived, buried in the dense
foliage that now occupies this area. Another bridge abutment (red arrow) was
captured amidst the foliage by
Google Street View near
where N. Covington now makes a right-hand turn into Chenault St. The
purpose of this abutment and whether it was railroad-related is undetermined;

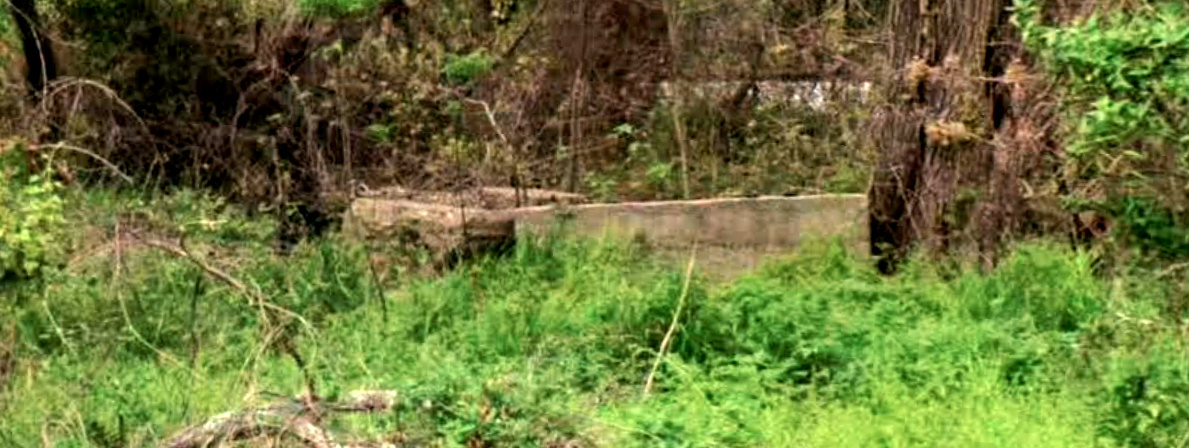

field investigation would be valuable. Below:
Did Google Street View (March, 2023) capture the foundation of Tower 44?
