Beginnings of Railroad Regulation
The first charter for a railroad in Texas was issued by the Republic of Texas to the Texas Railroad, Navigation & Banking Company on December 16, 1836. There was limited effort at regulation in this charter.
The first effort at regulating the railroads in Texas began in the second charter granted a railroad, the Galveston & Brazos Railroad Company, by the Republic of Texas on May 24, 1838. This charter stated in part that "Congress (of the Republic of Texas) shall have the sole power of regulating rates of tolls".
Thus began a long and drawn out effort in Texas to place some regulatory controls over the railroads. Despite these early charters, track laying did not start in Texas until 1852. On February 7, 1853, the Texas Legislature approved "An Act to Regulate Railroad Companies".
Other acts of the Legislator were approved between 1854 and 1866. A constitutional amendment was passed by popular vote of the people in February, 1876 ordering that "the legislature shall pass laws to correct abuses and prevent unjust discrimination and extortion in the rates of freight and passenger tariffs".
The Railroad Commission
Governor Richard B. Hubbard in 1876 first recommended a Railroad Commission as a governing authority to administer railroad laws. In 1890, James S. Hogg, attorney general of Texas, ran for Governor on a platform for the creation of a Texas Railroad Commission. James Hogg was elected Governor and in the same election a constitutional amendment was adopted creating a Railroad commission.
Following this constitutional mandate, the Texas legislature on April 3, 1891 passed "An Act to establish a Railroad Commission for the State of Texas, whereby discrimination and extortion in railroad charges may be prevented, and reasonable freight and passenger tariffs may be established." The first meeting of the Railroad Commission of Texas was held on June 10, 1891. The first Annual Report of the commission was issued for the year 1892.
The original focus for the Railroad Commission was rates and tariffs. It was not until the Eleventh Annual Report for the year 1902 that information regarding railroads crossing at grade began to appear.
Regulation of Railroads Crossing at Grade
An Act of the Twenty-seventh Legislature, known as Chapter 89, Section 2, became effective on July 9, 1901. This law provides that is shall be the duty of the Railroad Commission to define the mode of crossing to be made when one railroad seeks to cross the tracks of another railroad company. Under this law, the railroad companies had to install interlockers or other safety devices designated by the Railroad Commission, within one year from the effective date of the law.
A hearing on the matter was held by the Commission on October 15, 1901. It was shown to be impractical and unreasonable in cost to require all crossing to be interlocked within the time specified by the law. Therefore, the Commission in its order of November 8, 1901, required that all crossings be protected by gates pending further orders in the matter. Even with gates installed, the existing law requiring all trains to stop at a crossing remained in effect.
Interlockers in Texas
On May 21, 1902 a hearing was again held. The Commission approved rules and regulations governing the installation, maintenance and operation of interlocking plants. These rules became known as Circular No. 1597. The Commission also ordered all grade crossings should be properly protected by gates, until such time as interlocking plants were constructed and authorized to be operated.
The Commission defined an interlocking device "as a combination of signals, derails, locks and switches, controlled from a central tower and so arranged and connected as to make it physically impossible for the operation to promote a collision of trains on opposing routes. A disobedience of signals by an engineman will lead to the derailment of his engine or a portion of his train, but collisions of engines or trains on opposing lines are absolutely avoided."
The Commission planned for a phased installation of interlocking plants so as to spread out over a few years the cost of equipping crossing with interlockers.
Interlockers ordered installed by the Commission at existing crossings were to be paid for equally by each railroad. Maintenance cost was to be calculated by the number of levers needed to operate each railroad's functions. It is believed that where new crossings came about, due to expanding railroad construction, the second railroad to arrive paid for the installation of the interlocker. It is interesting to note that nowhere in documentation discovered so far was each tower "ordered" to be numbered. The numbering of the towers appears to be a convenience of recording keeping for the Railroad Commission. Numbers were sequentially assigned based on their authorization date by the Commission.
At the May 21, 1902 meeting, the Commission authorized for operation 3 locations which in later years became known as Tower 1, Tower 2 and Tower 3. The Commission also ordered about 22 more crossings protected by interlockers.
The procedure for authorizing a tower was also prescribed by the Commission. In general, the railroads had to submit a construction plan for approval to the Commission. Once construction was complete, the railroad would petition for inspection. Once a representative of the Commission had made an on site inspection, the Commission would "authorize" the operation of the interlocker by issuing an permit authorizing trains to proceed over said crossing without stopping. It is very possible that the interlocker had been constructed and in operation long before it was "authorized" by the commission.
Once approved for operation, monthly reports on the general condition of the interlocker were required to be sent to the commission.
Any physical change to the interlocker required the above approval process to be started over again.
In the 1903 annual report, there was a numbered list of interlockers ordered to be constructed for which plans had been approved, but which had not been authorized for operation. There were 67 interlockers on this numbered list, but none of the numbers correspond to actual tower numbers. Also in the 1903 annual report is the first list of Interlocking Devices in Texas Under the Authority and Approval of the Railroad Commission as of December 31, 1903. This authorized list had 30 interlockers showing their permanent "Tower Numbers".
In each subsequent annual report, the list of authorized interlockers was amended with new interlockers placed in service and with interlockers removed from service. This annual list of interlockers continued through the annual report for 1931. Beginning in the 1932 annual report, there was just a summary of number of towers placed in service. Even this summary of interlockers was removed from the annual reports beginning in 1943. Annual reports for the Railroad Commission continued through 1972, with no further mention of railroad interlockers. Through this period, the focus of the Commission shifted from railroad regulation to the regulation of the oil and gas industry. The passage of Federal legislation in 1980 called The Staggers Act effectively removed railroad regulatory control from the Texas Railroad Commission. Today, the Rail Division of the Railroad Commission focuses mainly on railroad safety.
AVOIDANCE OF GRADE CROSSINGS
An Act of the Twenty-seventh Legislature, published as Chapter
LXXXIX of its General Laws, see Appendix M, provides that it shall
be the duty of the Railroad Commission to ascertain and define
by its decree, the mode of crossing to be made, when one railroad
company seeks to cross with its track or tracks the track or tracks
of another railroad company, that will occasion the least probable
injury upon the rights of the company owning the road to be crossed;
it further provides that when it is reasonable and practicable
to avoid a grade crossing the Commission shall by its order prevent
the same. Section 3 of said act further provides that in case
grade crossings are authorized to be constructed the same shall
be protected by interlocking or such other safety device as the
Commission may designate.
This law was approved on April 15, 1901, and became effective ninety days after adjournment, I. e., on July 9, 1901. In accordance with its provisions, and upon application of the companies interested the Commission has issued orders defining the mode of crossing, and where a grade crossing was authorized, has designated the character of its protection for seventeen railroad crossings located as follows:
The importance of avoiding grade crossings of railroads, or of protecting same by proper devices when they cannot be avoided, has begun to receive general recognition throughout the country and a number of States have passed laws regulating them. This question was the subject of a resolution adopted by the Association of Southern Railroad Commissioners in session at Hot Springs, Ark., October 14, 1902, which was as follows:
"Resolved, That it is the sense of the Association of Southern Railroad Commissioners that each State should enact such laws as will result as far as practicable in the abolition of all grade crossing, or the adoption of such system of interlocking or other safety devices where such crossing cannot be abolished as may be necessary to protect persons and property at such crossings."
The wisdom of the railroad crossing law will become more evident as the absolute success of its operation, under proper rules and regulations, is demonstrated. As the number of trains on our railroads increase; as their cars are loaded to a greater capacity; as their locomotives become more powerful; as their trains become heavier and are operated on faster schedules; and as the necessity is constantly increasing for a more prompt, speedy and efficient moving of the traffic, both passenger and freight, the greater becomes the danger from collisions and accidents, involving loss of life and property, at grade crossings.
There can be no doubt but that the non-grade crossing is the character of crossing that will in all cases least affect the rights of the railway company already on the ground. This obtains by reason of the fact that it offers no obstruction to its traffic; nor endangers the lives of its passengers and employees; nor increases the expense of the operation of its trains. In the conduct of its affairs, to all intents and purposes, the crossing does not exist, while, on the other hand, if there is a grade crossing, the traffic of the older line is obstructed and impeded, and the lives of its employees and those of the public entrusted to its care are jeopardized by reason of the possibility of collisions of opposing trains and accidents at such crossings.
The most potent argument in favor of nongrade crossings, and the one in which the general public is most vitally interested, is the avoidance of danger to life and property. As a rule the question of cost should not be weighed against the lives of the passengers and employees of railroads. Wherever the tracks of two railroads cross each other at common grade there is an element of danger to the lives of persons and possibility of accidents that cannot be eliminated.
Former Chairman Lindly of the Illinois Railroad Commission, in an opinion on this question, said: "No ingenuity of man has yet found a device or appliance that will absolutely prevent all danger at grade crossings. However strict the rules and regulations thrown around employees, and however much vigilance they may exercise, they have proven ineffectual to protect the lives of the passengers and the employees themselves. The trainmen become accustomed to these grade crossings and look upon them as common affairs and trains run at high rates of speed over them and fearful accidents have occurred. This is a matter of common experience."
It has been and will continue to be the policy of this Commission to require that grade crossings of railroads be avoided wherever it is practicable and reasonable to do so; practical from an engineering point of view, and reasonable in point of cost and as affecting the communities surrounding the crossing.

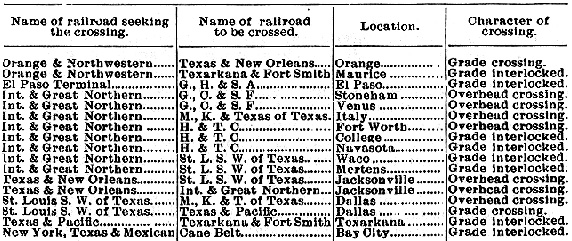

In accordance with Section 3 of said act relating to railroad crossings, the Commission has required, and will in the future, that all crossings authorized to be made at grade, shall be, protected by some standard interlocking device, to be constructed, maintained and operated Under rules and regulations approved by it.
INTERLOCKING AND OTHER SAFETY DEVICES.
Section 2 of Chapter 89, of the General Laws passed by the Twenty
seventh legislature, see Appendix M, provides
that it shall be the duty of railroad companies to protect all
grade crossings, then existing in the State, by interlocking or
other safety devices and regulations to be designated by the Railroad
Commission of Texas, the same to be accomplished within one year
from the date on which said act became effective.
In pursuance with the requirements of this act, the Commission called a general hearing in the matter, which was held on October 15, 1901 at which evidence was adduced showing that it would be impracticable as well as unreasonable from the point of cost to require that all grade crossings in the State be interlocked within the time specified by the law. Therefore, the Commission in its order of November 8, 1901, see Appendix M, required that all grade crossings should be protected by gates, under proper rules and regulations by the companies, pending further orders in the matter. At all crossings protected by gates, the existing law requiring all trains to come to a full stop before passing over such crossings was to remain in effect. The railroad companies were further required to file with the Commission certain information pertaining to the number of trains, etc., for all grade crossings in the State.
On May 21, 1902, a general hearing was again held in the office of the Commission, after which rules and regulations governing the installation, maintenance and operation of interlocking plants were adopted (see Circular No. 1597, Appendix M), and also it was ordered that standard interlocking plants be constructed at thirty-one of the grade crossings, considered most important and dangerous to traffic by the Commission, to be completed and ready for operation by or before June 30, 1903. After that date certain other grade crossings will be required interlocked, such as in the judgment of the Commission the necessities demand. It was also ordered that all grade crossings should be properly protected by gates, until such time as interlocking plants were constructed and authorized to be operated. A list of the interlocking plants ordered to be constructed at grade crossings in effect at the time of the passage of the law is given in Appendix M.
The Commission is convinced that from the nature of the interlocking device, it is the character of device that should be required at all grade crossings before trains are permitted to pass over such crossings without stopping. It has been described as a combination of signals, derails, locks and switches, controlled from a central tower and so arranged and connected as to make it physically impossible for the operation to promote a collision of trains on opposing routes. A disobedience of signals by an engineman will lead to the derailment of his engine or a portion of his train, but collisions of engines or trains on opposing lines are absolutely avoided.
The advantages of protecting grade crossings by interlocking devices are twofold: 1. As a measure of safety for passengers and employees. 2. As a measure of economy for the railroad companies. The first concerns chiefly the public, but the avoidance of accidents, relieving railroad companies from the expense of possible damage suits, is of considerable importance to them. The second measure noted, economizes power and time as it becomes unnecessary for trains to stop at crossings so protected, and it facilitates the prompt and rapid handling of traffic. As trains become more frequent and are operated on faster schedules, it becomes evident that the human factor must be relieved of its responsibilities whenever possible and superseded by well-designed apparatus, the operation of which is mechanically uniform and certain and any failure of which will invariably be on the side of safety when nothing can happen more than the stopping of a train.
It is the intention of the Commission that the installation of interlocking plants shall be gradual, each year requiring the protection of those crossings that are regarded as most dangerous, in order that the expense of same may not be burdensome to the railroad companies. In addition to the thirty-one plants herein before mentioned as having been required by the Commission, and the eleven plants ordered at new crossings, plans have been submitted for plants at several other crossings that were not required, indicating that the movement of grade crossing protection is, as a rule, favored by the companies, and regarded as a measure of economy.

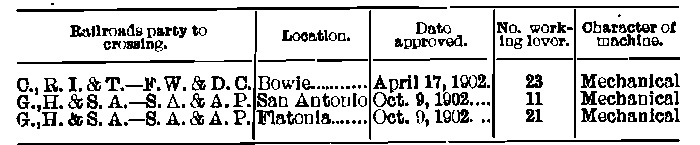

The following interlocking plants have been approved by the Commission and authorized to be put in operation:
AN ACT to authorize, require and empower the Railroad Commission of the State of Texas to regulate railways crossing each other; to provide for interlocking or other safety appliances or devices of equal security, to prevent trains colliding at such crossings, and to provide a penalty for refusal to comply with the provisions of this act, and to repeal all laws and parts of laws in conflict with this act.
Be it enacted by the Legislature of the State of Texas:
SECTION 1. That where it should become necessary for the track of one rail road company to cross the track of another railroad company, it shall be the duty, of the Railroad Commission of the State of Texas to ascertain and define by its decree the mode of such crossings which will occasion the least probable injury upon the rights of the company owning the road which is intended to be crossed; and if it should appear to the said Commission that it is reasonable and practicable to avoid a grade crossing said Commission shall by its order prevent the same.
SECTION 2. That in any case where the tracks of two or more railways cross each other at a common grade in this State it shall be the duty of such railroad company to protect such crossings by interlocking or other safety devices and regulations to be designated by the Railroad Commission of Texas to prevent trains colliding at such crossings; provided, that all railway companies in this State shall have one year after the passage of this bill in which to comply with the provisions hereof.
SECTION 3. In case any railway company shall hereafter seek to cross at grades with its track or tracks the track or tracks of another railroad, the railroad seeking to cross at grade shall be compelled to interlock or protect such crossings by safety devices to be designated by the Railroad Commission and to pay all costs of appliances, together with the expenses of putting them in; provided, that this act shall not apply to crossings of side tracks.
SECTION 4. Whenever interlocking or other safety devices are constructed and maintained in good order to the satisfaction of the Railroad Commission in compliance with Sections 2 and 3 of this act, then and in that case it shall be lawful for the engines and trains of such railroad or railroads to pass over such crossings without stopping.
SECTION 5. Any company, corporation, receiver or person operating any railroad who shall refuse or neglect to comply with any order made by the said Railroad Commission in pursuance with the terms of this act shall forfeit and pay to the State of Texas a penal sum of five hundred dollars per week for each week of such refusal and neglect, which said sum may be recovered in suit or suits to be brought by the Attorney General of the State of Texas in the name of the State of Texas upon duly verified information of such refusal and neglect by any such railway company being lodged with said Attorney General by the said Railroad Commission.
SECTION 6. All laws and parts of laws in conflict with the
provisions of this act are hereby repealed. The near approach
of the end of the present session and the crowded condition of
the calendar creates an emergency and an imperative public necessity
that the constitutional rule requiring bills to be read on three
several days be suspended and said rule is hereby suspended.
Approved April 15, 1901.
Takes effect 90 days after adjournment.
AUSTIN, TEXAS, November 8, 1901.
The Railroad Commission of Texas having, on July 17, 1901, issued
the following general order, viz.:
"It is ordered that notice be, and the same is hereby given, to all persons interested that the Railroad Commission of Texas will, on Tuesday, July 30, 1901, at its office in Austin, take up and consider the adoption of the necessary order or orders providing for the establishment by the railroad companies of the State of such interlocking or other safety devices at crossings, as provided for in Chapter 89, General Laws of the Twenty-seventh Legislature. All persons interested in said matters are requested to present to the Commission, on or before the day of the hearing, their views in regard to the same."
And the hearing on said notice having been continued from time to time until October 15, 1901, when the same was called for final consideration, and when the several railroad companies in this State being present by their representatives, and having submitted for the consideration of the Commission the following statement:
AUSTIN, TEXAS, October 15, 1901
Maj. Chas. B. Peck, Chairman:
Your committee beg leave to report that the railways of Texas
appear before the Railroad Commission and recommend that the Commission
make an order requiring gates at each grade crossing on railroads
within the State of Texas, at each main line crossing existing
at the time of the passage of the law, except ,where safety devices
now exist, within the time prescribed by the act of the Twenty-seventh
Legislature, requiring safety devices at crossings, and that the
Railroad Commission request the railways of the State to make
report as to the condition of the various crossings upon their
lines, and as to the practicability or impracticability of separating
grades at such crossings and the probable cost of such separation;
and that they report also the probable number of trains over crossings
at which separation of grades is impracticable, and where the
two roads can agree upon the character of safety device to be
inserted at such crossings, that they make report thereof. And
that such reports be required to be made to the Railroad Commission
of Texas within ninety (90) days from the date on which the request
therefor is received by the railways. This report and the orders
made by the Commission are not intended to affect contracts for
interlocking devices at crossings between railways.
"Respectfully submitted, (Signed)
L. J. Polk,
E. B. PERKINS,
J. W. MAXWELL,
"Committee."
Which was taken under consideration, and it appearing to the Commission that the act of the Legislature of Texas upon this subject went into effect July 9, 1901, and it further appearing to the Commission that the proposition as above made by the railway companies is reasonable and a proper course to pursue, the same is approved and hereby made the order of the Commission. It is further ordered that a copy of this order and decree be at once mailed to the general manager of each of the railroads doing business in this State, and that the general manager of each road in this State be and he is hereby required to make to this Commission the report above required on or before the 1st day of February, 1902, for such further consideration as this Commission may thinks proper to give to the subject.
Chicago, Rock Island & Texas Railway:
1. Crossing with G., C. & S. F. Rwy. at Saginaw.
Fort Worth & Deliver City Railway:
1. Crossing with G., C. & S. F. Ry. at Saginaw.
Galveston, Harrisburg & San Antonio Railway
1. Crossing with H. & T. C. R. R. at Chaney Junction.
2. Crossing with S. A. & A. P. Ry. at Blodgett.
3. Crossing with G., C. & S. F. Ry. at Rosenberg.
4. Crossing with S. A. & A. P. Ry. at Flatonia.
5. Crossing with S. A. & A. P. Ry. at San Antonio.
Gulf, Beaumont & Kansas City Railway:
1. Crossing with T. & N. 0. R. R., main line, Sabine Pass
branch and Dallas branch (three crossings), at Beaumont.
Gulf, Colorado & Santa Fe Railway:
1. Crossing with G. H. & S. A. Ry. at Rosenberg.
2. Crossing with I. & G. N. R. R. at Milano.
3. Crossing with M., K. & T. Ry. of Texas at Temple.
4. Crossing with T. & P. Ry. at Fort Worth.
5. Crossing with C., R. I. & T - .F. W. & D. C. Ry. at
Saginaw.
6. Crossing with H. & T. C. R. R. at Dallas.
7. Crossing 'with T. & P. Ry. at Dallas.
8. Crossing with M., K. & T. Ry. of Texas at Dallas.
Houston & Texas Central Railroad
1. Crossing with G., H. & S. A. Ry. at Chaney Junction.
2. Crossing with M K. & T. Ry. of Texas at Eureka.
3. Crossing with I. & G. N. R. R. at Hearne.
4. Crossing with T. & P. Ry. at Dallas.
5. Crossing with T. & P. Ry. at Fort Worth.
6. Crossing with M., K. & T. Ry. of T. - St. L. S. W. Ry.
of T. at Waco.
International & Great Northern Railroad:
1. Crossing with T. & N. 0. R. R. at Houston.
2. Crossing with H. & T. C,. R. R. at Hearne.
3. Crossing with G., C. & S. F. Ry. at Milano.
4. Crossing with M., K. & T. Ry. of Texas at Taylor.
Missouri, Kansas & Texas Railway of Texas:
1. Crossing with H. & T. C. R. R. at Eureka.
2. Crossing with I. & G. N. R. R. at Taylor.
3. Crossing with G., C. & S.F. Ry. at Temple.
4. Crossing with H. & T. C. R. R. at Waco.
5. Crossing with T. & P. Ry. at Fort Worth.
6. Crossing with G., C. &S. F. Ry. at Dallas.
7. Crossing with T. & P. Ry. at Dallas.
Orange & Northwestern Railroad:
1. Crossing with T. & N. 0. R. R. near Orange.
San Antonio & Aransas Pass Railway:
1. Crossing with G., H. & S. A. Ry. at Blodgett.
2. Crossing with G., H. & S. A. Ry. at Flatonia.
3. Crossing with G., H. & S. A. Ry. at San Antonio.
St. Louis SouthWestern Railway of Texas,
1. Crossing with T. & F. S. Ry. at Texarkana.
2. Crossing with T. & P. Ry. at Joint Track.
3. Crossing with H. & T. C. R. R. at Waco.
Texarkana & Fort Smith Railway
1. Crossing with T. & P. Ry. at Texarkana.
2. Crossing with St. L. S. W. Ry. of Texas at Texarkana.
3. Crossing with T. & N. 0. R. R. near Beaumont.
Texas & New Orleans Railroad:
1. Crossing with I. & G. N. R. R. at Houston.
2. Crossing with G. B. & K. C. Ry.. (three tracks) at Beaumont.
3. Crossing with T. & F. S. Ry. near Beaumont.
4. Crossing with 0. & N. W. R. R. near Orange.
Texas & Pacific Railway:
1. Crossing with T. & F. S. By. at Texarkana.
2. Crossing with G., C. & S. F. Ry. at Dallas.
3. Crossing with H. & T. C. R. R. at Dallas.
4. Crossing with M., K. & T. Ry. of Texas at Dallas.
5. Crossing with H. & T. C, - G C & S. F, - M., K. &
T. of T. at Fort Worth.
6. Crossing with St. L. S. W. Ry. of Texas at Joint Track.
It is further ordered that the interlocking devices at said crossings shall be constructed, inspected by this Commission and put in operation under its permit on or before June 30, 1903.
It is further ordered that the cost of each interlocking device, together with the expense of putting it in, shall be borne equally by the railroad companies and maintenance shall in proportion to the number of levers necessary to operate the tracks of each. Provided, however, that nothing in this order shall have the effect of abrogating any existing contracts or agreements that may have been entered in to between railroad companies affecting the division of the expense of installing, operating and maintaining an interlocking device at any railroad crossing.
It is further ordered that at all grade crossings of railroads not protected at this time by interlocking devices approved by this Commission there shall be installed crossing gates of such pattern and design that whenever broken down by the engines or cars of either railroad company it can be at once determined which railroad company's employees were at fault and responsible. Such gates shall be operated under strict rules and regulations by each railroad company. Such gates shall remain in operation at all railroad crossings until such time as they have been protected by interlocking or other safety devices inspected and approved by this Commission. The expense of constructing and maintaining. each gate shall be borne equally by each railroad company party to any crossing. At all crossings protected by gates it is further ordered that all trains shall be brought to a full stop before proceeding over such crossing, and shall give the signals prescribed by law when approaching such crossings.
It is further ordered that whenever it has been determined to be practicable to separate the grades at any of the above and foregoing crossings which have been ordered to be interlocked, and the railroad companies parties thereto desire to separate such grades, this order shall be suspended with regard to requiring such crossings interlocked; provided, however, that such separation of grades shall be effected within the time specified by this order.
It is further ordered that each railroad company shall, on or before the 30th day of April, 1903, report to this Commission the average number of trains operated by it per day over each crossing not interlocked or ordered to be interlocked; the location of each crossing where it has been determined and agreed upon by each company that separation of grades is practicable and shall be made before June 30, 1904; all for such future action as this Commission may consider advisable with regard to such other crossings as it may require to be interlocked during the year ending June 30, 1904.
And it is further ordered, considered and hereby expressly understood that this Commission reserves the right at any time to at once order and require to be interlocked any other railroad crossing whenever in its opinion the dangers and necessities of the situation demand.
This order shall take effect July 1, 1902.
(General Hearing May 21, 1902.)
Austin, TEXAS, May 31, 1902.
It is hereby ordered by the Railroad Commission of Texas, that
the following rules and regulations be adopted governing the installation,
maintenance and operation of standard, interlocking devices established
at grade crossings of railroads for the protection of same in
accordance with the provisions of Chapter LXXXIX of the General
Laws of the Twenty-seventh Legislature of the State of Texas,
which became effective July 9, 1901:
General Rules.
1. Plan to be submitted for approval.
Wherever it has been ordered by the Commission that an interlocking
device shall be established at any railroad crossing, or wherever
it is desired by railroad companies that same be established,
there shall be filed with said Commission, for its approval, a
complete plan, in duplicate, of each crossing showing in detail
the location of all main tracks; the length and location of all
sidings, spurs and switches; the location of all buildings and
other obstructions to the view in the vicinity of the crossing;
the proposed location of all towers, derails, signals, switch
points, detector bars, etc., all of the same to be fixed by measurements
indicated by plain figures and to be accurately located on the
plan.
At each switch, derail, signal, detector bar, lock, etc., shown on the plan there must be plainly marked the number corresponding to the number of the lever by which same is to be operated.
The plan shall be drawn to a scale not less than 100 feet per inch.
There shall accompany every plan filed a complete profile of each main line of railroad for a distance of not less than one mile on each side of the crossing. Said profile shall be drawn on standard profile paper and shall show, in addition to the ground and grade lines of each railroad, the character and dimensions of all bridges and culverts, the gradients, the alignment and all other features usually shown on profiles of railroads.
2. Petition for inspection.
When the plan submitted for an interlocking device at any railroad
crossing has been duly approved by the Commission, and same has
been constructed and is ready for operation, a petition shall
be made to the Commission for an inspection of said device, accompanied
by a plan similar to the one specified in Section 1, showing,
in all things the device as actually constructed. In addition
there shall accompany said petition a complete diagram of the
locking of said device, together with a manipulation sheet showing
the combinations necessary to set up for each of the several routes
governed by the signals. A copy of the rules and regulations of
each company I governing and affecting the operation of its interlocking
plants must accompany said petition.
3. Applications and petitions must be signed.
The application for the approval of any plan foe an interlocking
device at any railroad crossing, also the petition for the inspection
of same, must be signed by the general manager or general superintendent
of each line of railroad party to such crossing.
4. Inspection will be made.
When the petition for inspection of any. interlocking device at
any railroad crossing has been received, a time will be set for
its inspection by the Commission or its duly, authorized employee,
and due notice will be given to each railroad company that it
may be represented at such inspection.
5. Order authorizing trains to not stop.
When it has been determined by actual inspection that an interlocking
device at any railroad crossing has been constructed in accordance
with the plan submitted to and approved by the Commission, and
that such device is operated in a thoroughly reliable and safe
manner by competent employees, then a permit will be issued authorizing
trains to run over said crossing without stopping.
6. Interlocking devices must be maintained and safely operated.
Every interlocking device must be properly maintained and efficiently
operated under strict rules and regulations by the railroad companies.
If at any time it should be determined by the Commission that
any interlocking device is not properly maintained and efficiently
operated then it shall be the duty of the Commission to cancel
its permit approving the operation of such interlocking device,
and all trains will be required to stop at such crossing the same
as if no interlocking device existed.
7. Monthly reports required.
The general manager or general superintendent of each railroad
company operating interlocking devices approved by the Commission
must make monthly reports on blanks furnished by the Commission
with regard to the general condition of said devices, and the
conditions under which they are operated and maintained. Detailed
reports of accidents which may occur at crossings which are protected
by approved interlocking devices must be made at once, stating
generally the conditions surrounding such accidents.
Requirements and Recommendations for Guidance in Construction
of Interlocking Systems.
8. Style of signals.
It is ordered that a uniform system of signals by means of semaphores
and lights be adopted by all railroad companies in order that
there shall be no confusion at any time with regard to the meaning
of such signals. It is further ordered that the red light be used
to indicate "Danger, Stop," the green light to indicate
"Safety, Proceed," and the yellow light to indicate
"Caution."
All signals must he of the semaphore type, and so constructed as to go to the danger position by force of gravity in case the connections between the operating lever and signal are broken. All signals must be provided with a lamp showing front lens properly focused and a back light except as hereinafter provided.
9. Home signals.
The home signal must, when practicable, be located on the engineman's
side of the track it governs, and must be not less than fifty
(50) feet nor more than two hundred (200) feet in advance of the
point it governs, except when special conditions exist. The signal
must point to the right of the track it governs and must have
a square end. When the derail or facing point or crossing is set
against the train movements governed by the home signal, the signal
must be locked in a horizontal position, showing red color by
night, indicating "Danger, Stop."
When the track it governs is clear and safe for the passage of trains, the signal must be inclined at an angle of about sixty (60) degrees from the horizontal, showing a green color by night to on approaching train, indicating "Clear Track, Advance."
In case two signal arms are used on the home signal post, the top arm must in all cases govern main or high speed route and the lower signal the diverging route or routes.
In mechanical interlocking systems the home signal must be worked by pipe connections.
10. Distant signals.
The distant signal must be located not less than twelve hundred
(1200) feet in advance of the home signal with which it operates
except under such special cases as may be approved by the Commission.
It must be placed on the same side of the track with its arm pointing
in the same direction as the home signal. It must be distinguished
by a notch cut in the end of a semaphore arm. It must be so arranged
and connected with the home signal that it will be held in a horizontal
position, showing yellow, or "Caution," color by night
to approaching trains when the home signal indicates danger. The
distant signal must be worked by two lines of wire.
11. Switch indicators.
Rotating indicators, known as pot or disc signals, must only be
used as switch indicators, operated with the switch.
12. Dwarf signals.
Dwarf signals having a small area and suitably adapted as to height
must be similar in design and location to the home signal. They
must be used to govern movements on secondary tracks or movements
against the current of traffic on main tracks where reverse movements
become necessary and where necessary in yards.
13. Bracket posts.
Bracket posts must be used in all cases where it is necessary
to signal trains on different tracks, operated in the same direction,
from the same post; the position of the posts on the bracket to
correspond to the position of the track on which movements are
to be governed.
14. General arrangement of signals.
The operator in the tower must be able to see the arms and the
back lights of all signals; the back lights on the lamps to be
made as small as practicable, having regard to efficiency. When
the front lights are visible to the operator in the tower, no
back lights will be required. If from any unavoidable cause the
arm or light of any signal cannot be seen by the operator, a repeater
or indicator must be provided in the signal tower.
15. Derails.
The derailing point shall be located on high speed tracks, not
less than four hundred (400) feet in advance of the crossing or
fouling point which it is intended to protect where the grade
is practically level; but in case of a descending grade towards
the crossing or fouling point, the derailing point must be located
at such a distance from the crossing or fouling point as to give
the same measure of protection that is required for level approach.
When, in the opinion of the Commission, the train service and character of traffic on any high speed track is such that the above limit can be varied from, the location of derails will be approved at such distance in advance of the crossing or fouling points as in its judgment will give an equal measure of protection.
Guard rails will be required at all derails, to begin before the derail is reached, and to be of such length as the Commission may approve. They will be required at all points where the Commission will deem necessary for safety and protection of trains.
16. Derail points on secondary tracks.
On all secondary tracks the derail point shall be located so as
to give the same measure of safety required for high grade tracks,
and in no case less than one hundred and fifty (150) feet from
the crossing or fouling point.
17. Derails on spur tracks or sidings.
In case a spur or switch track connects with the main track between
the derail and the crossing which it protects, the spur or siding
shall be provided with a derail in accordance with the foregoing
requirements.
18. Backup derails on double track.
In case of double track crossings where trains are moved on each
track, as a rule, in one direction, a derail shall be provided
for backup movements, and for the further purpose of insuring
clearance of crossing before clearance signal can be given on
opposing route. The backup derail must be placed not less than
150 feet nor more than 300 feet from such crossing.
19. Derails, how worked.
In mechanical interlocking plants all derails and point switches,
whether facing or trailing; must be worked either by iron or steel
pipe not less than one inch inside diameter, of standard specifications.
20. Locks for derails, slip switches and non-movable point
frogs.
All slip switches, movable point frogs and derails must be locked
either by a separate line of connections from those used to move
such slip switches, movable point frogs or derails, or by double
pointed switch and lock movement of approved pattern. Where the
double pointed switch and lock movement is used on high speed
tracks, it must be in connection with a bolt lock operated with
the home and distant signal, which indicates the position of the
facing point.
21. Switch movements.
Switch movements must be located on long ties extending a sufficient
distance from the rail or on other suitable foundation, and the
switch movement must be further connected with the rails by a
continuous plate extending under the rails, fitted with special
braces to insure accurate adjustment and maintenance of gauge
of track. All ties to which lock movements or switch and lock
movements are fastened must be firmly strapped to adjacent ties.
22. Detector bars.
All derails, facing point switches and other fixtures changing
the route or impeding the progress of trains shall be protected
by detector bars each at least fifty (50) feet in length. The
first interval of the movement of the switch lever which withdraws
the locking pin must, at the same time, raise the detector bar
above the level of the rail. The final movement of the switch
lever must advance the detector bar to its normal position, the
level of the rail. If the detector bar is not worked on the switch
lever it must be actuated before the switch is moved in either
direction.
23. Detector bars at crossings.
When, in the opinion of the Commission it is practicable, detector
bars or electric locking will be required at each crossing. Crossing
bars must be interlocked with the movement that operates the derails
to insure a clear crossing before an opposing route can be set
or signal given.
24. Arrangement of levers in mechanical machine.
In all mechanical interlocking devices, the levers by which points
and signals are worked must be grouped in a tower and supported
on a suitable foundation. All levers must he pivoted on a common
center. So far as may be practicable the levers must be so arranged
that those used in any route combination shall be near together,
preference being given to combinations most often set up. The
levers must be numbered from left to right. The visible parts
of the levers above the machine, except the finished part of the
handle, should be painted as follows: Switch levers, black; lock
levers, blue; switch and lock levers, black and blue; home signal
levers, red; distant signals levers, green, and movable point
frog levers, yellow.
25. Preliminary locking.
The locking must be actuated by the action of the latch rod or
by a device performing a similar service in advance of the first
movement of the lever. The first act in reversing a lever must
lock the levers of all conflicting routes.
26. Looking of levers.
The levers must be so arranged that while the signals are in their
normal position, I. e., at danger, the levers, operating points,
shall be free to move. Provided, however, that the preliminary
act of reversing any lever shall lock all signal levers controlling
opposing routes. The arrangement of locking must be such, as to
make it impossible for the signalman to lower the signal for the
approach of the train until he has first set the points in the
proper position for it to pass over the route governed by such
signal. The locking must be so devised as to make it impossible
for the signalman to exhibit at the same movement any two signals
or combination of signals that can lead to a collision.
27. Signal towers.
Signal towers must be so placed and of such height as to afford
the best possible view of the signals and other parts of the interlocking
plant.
28. Automatic compensation.
Each line of pipe must be automatically compensated. Such automatic
compensators must be located at such intervals in the line as
to completely provide for expansion and contraction at various
temperatures.
29. Foundation of pipe compensators and cranks.
All pipe compensators and cranks must be fixed on suitable foundations.
30. Changes in systems after permit is issued.
In case any company desires to make any change in the mechanical
construction, arrangement or location of any interlocking system
or machine now or hereafter operated under permit of the Railroad
Commission, or any of the parts of such system, a new or supplemental
application with amended plans shall be filed with the Commission,
showing specifically the nature of the changes proposed, and a
new permit procured thereon to operate such system as changed
or amended, and any change made without a new permit first being
procured, in pursuance of this rule, or any change made by any
company in the manner of moving cars and engines within the limits
of the interlocking system, not contemplated by the Commission
when the permit was issued, will be deemed ipso facto to work
a forfeiture of the permit.
This order shall take effect July 1, 1902.
